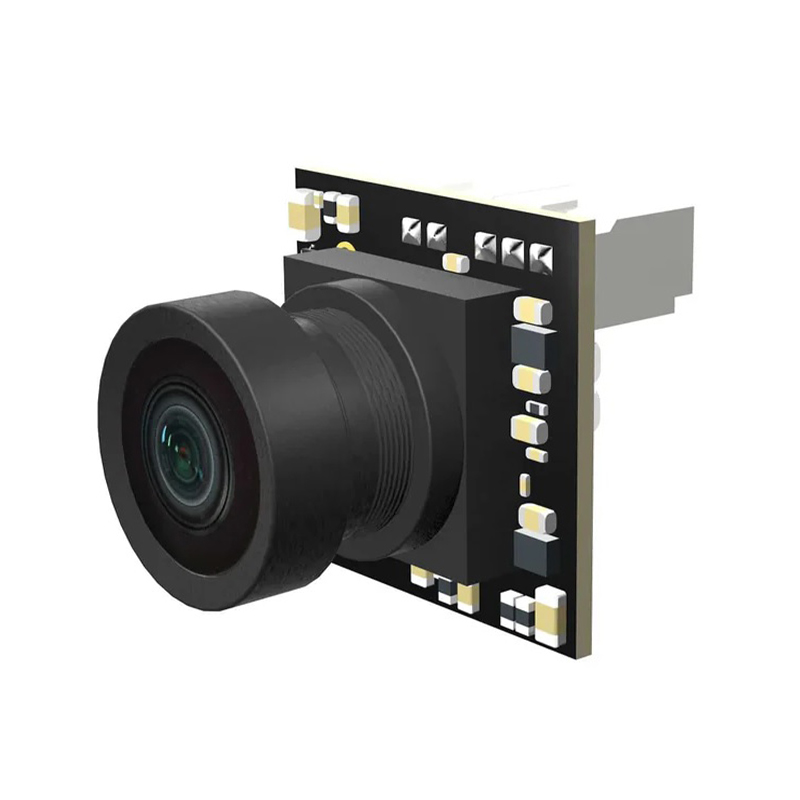

CaddxFPV Ant Lite Analog Camera (FPV Cycle Edition) (4:3) - Black

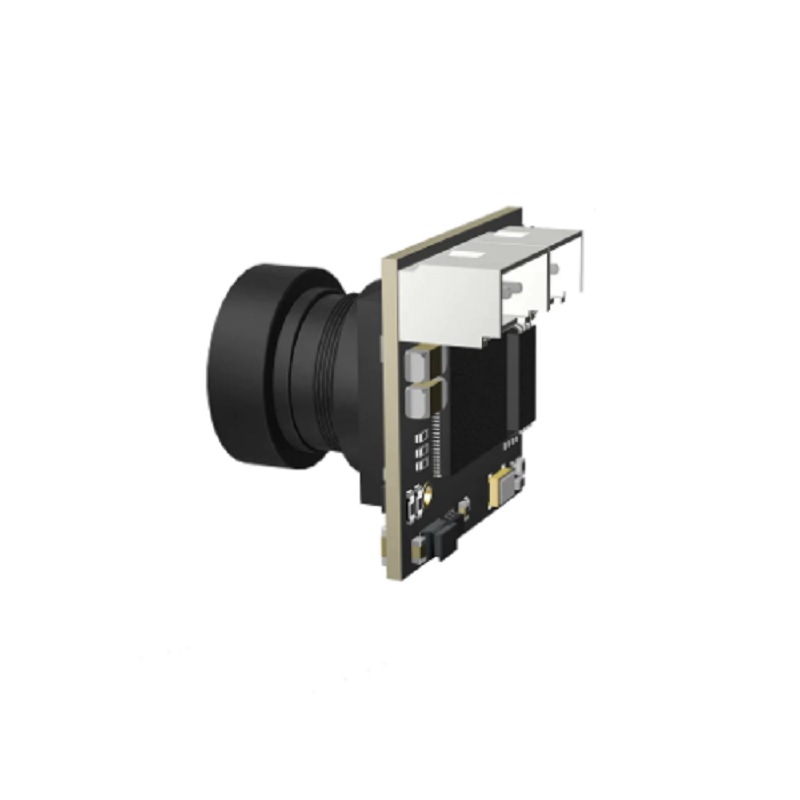

CaddxFPV Ant Lite Analog Camera (FPV Cycle Edition) (4:3) - Black - Image 2
SKU: DRFC-2272
📋 GST Invoice Available

CaddxFPV Ant Lite Analog Camera (FPV Cycle Edition) (4:3) - Black

₹2,079.00 (Inclusive of all taxes)
Out of Stock

The CaddxFPV Ant Lite Analog Camera (FPV Cycle Edition) is a 1200TVL, 4:3 aspect ratio CMOS FPV camera designed for low-latency analog video systems. It features a wide 5-25V input voltage range for compatibility with various drone power systems, including 1S to 6S LiPo configurations.

Features

  • 1200TVL resolution for high-detail analog video feed.
  • 4:3 image aspect ratio provides a wider vertical field of view.
  • Wide 5-25V DC input voltage range for flexible power system integration.
  • Ultra-lightweight 1.7g design minimizes impact on drone weight and balance.
  • 1/3″ CMOS sensor with configurable electronic shutter (PAL/NTSC).

Out of stock

Description

The CaddxFPV Ant Lite (FPV Cycle Edition) is a specialized analog FPV camera optimized for clarity and low-latency performance. Its 1200TVL resolution delivers a sharp image, while the 4:3 aspect ratio offers a taller field of view compared to 16:9, beneficial for technical flying and proximity navigation where seeing more vertical space is advantageous.

Engineered for robust integration, the camera accepts a broad 5-25V input, making it directly compatible with standard flight controller 5V/9V/12V pads or directly from a LiPo battery via a regulated BEC. The compact and lightweight form factor ensures minimal aerodynamic drag and simplifies mounting on tight micro and mini FPV drone builds.

Key Features

  • High-Resolution 1/3" CMOS Sensor: Captures 1200TVL analog video with good low-light performance and adjustable electronic shutter.
  • Broad Voltage Compatibility: Operates from 5V to 25V, supporting direct connection to 2-6S LiPo batteries or regulated flight controller outputs.
  • Optimized 4:3 Aspect Ratio: Provides a taller image useful for freestyle and racing pilots who prefer a more square field of view in their FPV goggles.
  • Ultra-Lightweight Construction: At just 1.7 grams, it significantly reduces the payload weight for performance-focused builds.
  • Durable Operating Range: Functions reliably in temperatures from -20°C to +60°C and humidity from 20% to 80%.

Applications

  • Lightweight 3-inch and 5-inch FPV racing and freestyle drone builds.
  • Micro and Whoop-class drones where every gram of camera weight matters.
  • Analog FPV systems where a 4:3 aspect ratio is preferred for goggle displays.
  • DIY drone projects requiring a compact, wide-voltage-range camera.
  • FPV Cycle Edition builds or any application demanding a low-profile, durable camera.

Technical Specifications

ModelCaddxFPV Ant Lite Analog Camera (FPV Cycle Edition) (4:3)
Resolution1200 TVL
Image Sensor1/3" CMOS
Aspect Ratio4:3
Input VoltageDC 5-25V
Operating Temperature-20°C to +60°C
Operating Humidity20% to 80%
Electronic ShutterPAL: 1/50~1/100,000; NTSC: 1/60~1/100,000
Weight1.7 g
ColorBlack

Frequently Asked Questions

What is the input voltage range for the CaddxFPV Ant Lite camera?

The CaddxFPV Ant Lite camera accepts a wide DC input range from 5V to 25V. This allows it to be powered directly from a 2S to 6S LiPo battery via a suitable regulator or directly from common 5V, 9V, or 12V pads on most flight controllers, offering exceptional setup flexibility.

What are the benefits of a 4:3 aspect ratio versus 16:9 for FPV?

A 4:3 aspect ratio provides a taller field of view compared to the widescreen 16:9 format. Many pilots find this advantageous for technical flying, as it shows more vertical space above and below the horizon, which can help with landing, judging gaps, and general spatial awareness when using goggles with 4:3 display modules.

Is this camera compatible with both PAL and NTSC video systems?

Yes, the camera supports both PAL and NTSC video standards. The electronic shutter is adjustable, with a range of 1/50 to 1/100,000 second for PAL and 1/60 to 1/100,000 second for NTSC, allowing you to match the camera's output to your video transmitter and goggles' region setting.

Package Includes

  • 1 x CaddxFPV Ant Lite Analog Camera (FPV Cycle Edition) (4:3) - Black

Additional Information

Weight 0.011 kg
Dimensions 5 × 5 × 2 cm
