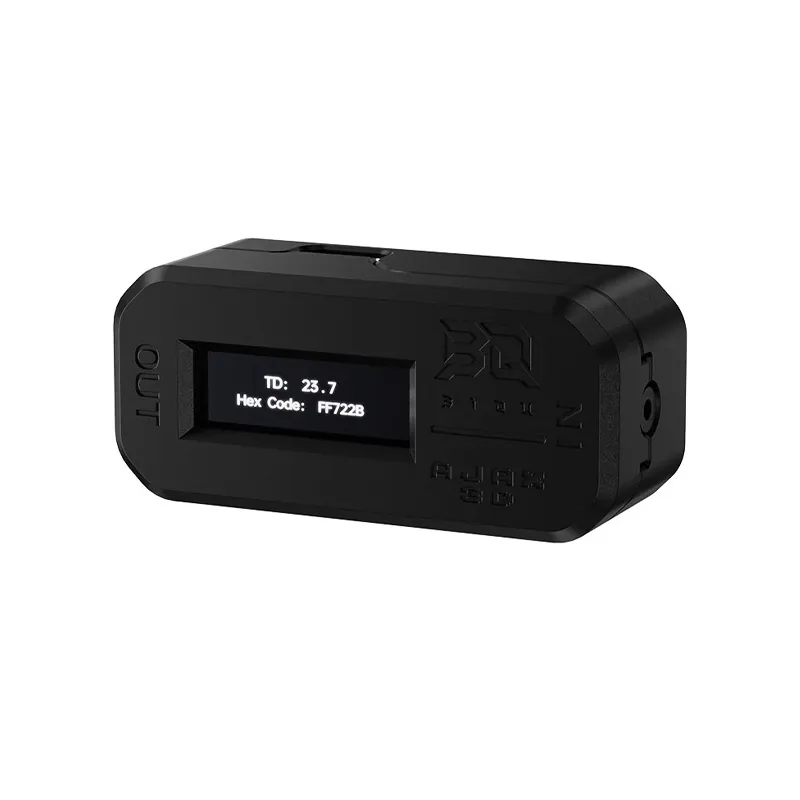

BIGTREETECH TD1s V1.0 Color & TD Sensor for HueForge

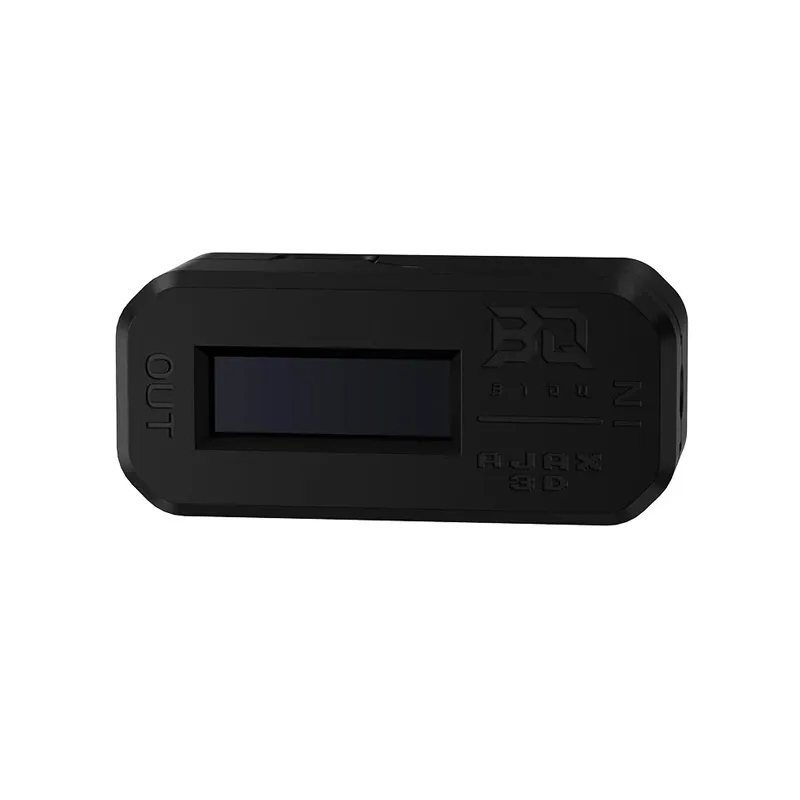

BIGTREETECH TD1s V1.0 Color & TD Sensor for HueForge - Image 2

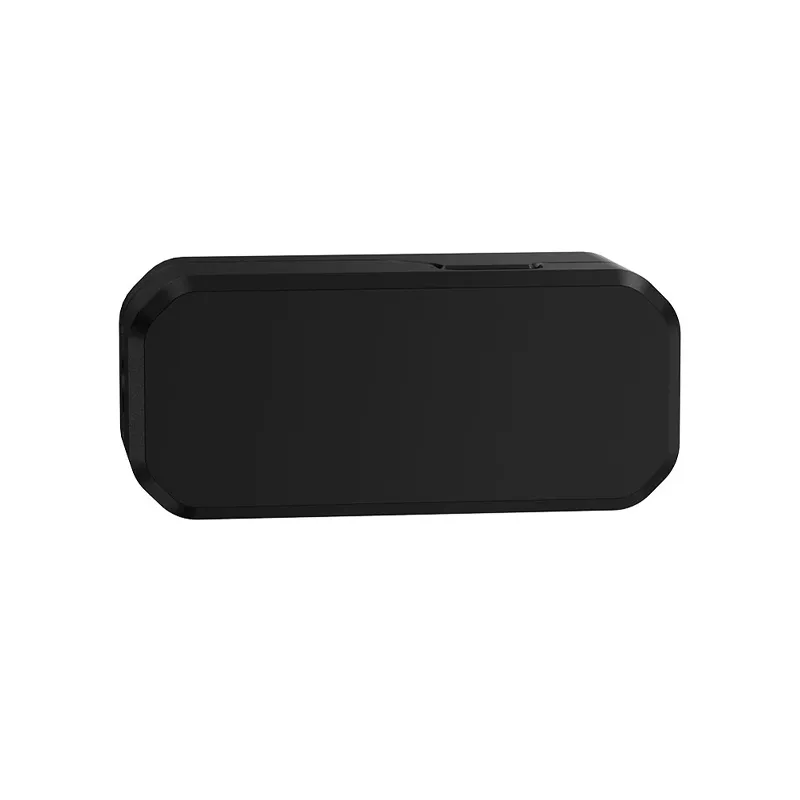

BIGTREETECH TD1s V1.0 Color & TD Sensor for HueForge - Image 3
SKU: 3DDF-1291
📋 GST Invoice Available

BIGTREETECH TD1s V1.0 Color & TD Sensor for HueForge

₹10,659.00 (Inclusive of all taxes)
Out of Stock

The BIGTREETECH TD1s V1.0 Color and TD Sensor is a smart, compact tool designed to precisely measure filament Transmission Distance (TD) and capture accurate hex color codes. Ideal for optimizing HueForge prints, it provides real-time data with high accuracy via its OLED display and USB-C connectivity.

Features

  • High-precision filament Transmission Distance (TD) measurement with ±7.5% accuracy.
  • Captures accurate hex color codes, essential for digital design and HueForge.
  • Features a real-time OLED display for instant feedback and USB-C 5V power input.
  • Supports 1.75mm filament for consistent clarity and color data acquisition.

Out of stock

Description

The BIGTREETECH TD1s V1.0 Color and TD Sensor is an indispensable tool for 3D printing enthusiasts focused on color accuracy and filament transparency control. This compact device precisely measures the Transmission Distance (TD) of any filament, providing crucial data for achieving true-to-life results in HueForge and similar advanced slicing software. Its robust design ensures reliable performance, making it a valuable addition to any maker’s toolkit.

Equipped with a clear OLED display and a versatile USB-C connection, the TD1s delivers instant, real-time readings. It can operate independently for quick checks or connect to your computer for integrated workflow with design software. Whether you are assessing material clarity for ambitious lamp projects, fine-tuning TD values for artistic prints, or ensuring filament consistency, the TD1s makes the process straightforward, precise, and dependable. Enjoy rapid calibration, continuous data monitoring, and a design that seamlessly integrates into your creative and technical workflow.

Key Features

  • Measures filament Transmission Distance (TD) with high precision (±7.5% accuracy).
  • Captures accurate hex color codes for digital design and material matching.
  • OLED display provides real-time measurement feedback directly on the device.
  • Works standalone for quick inspections or integrates with software like HueForge.
  • USB-C powered for universal compatibility and convenient power input.
  • Includes a Quick Capture Mode for instant filament registration.
  • Offers a Continuous Capture Mode for live TD tracking during specific processes.
  • Specifically designed to accommodate 1.75mm filament diameter.

Applications

  • Optimizing HueForge 3D prints by providing accurate Transmission Distance (TD) values.
  • Measuring filament transparency for projects requiring specific light transmission properties.
  • Capturing precise hex color codes for digital design, material selection, and color matching.
  • Conducting quality control and characterization of 3D printing filaments.
  • Enhancing visual fidelity and predictability in multi-material or aesthetic 3D prints.

Technical Specifications

Item Type3D Printer Accessory, Color and TD Sensor
Sensing Range0 to 100% TD
Filament Diameter1.75mm
Length54.5mm
Width21.6mm
Model NumberTD1s
Product Weight23g
Operating Voltage5VDC

Frequently Asked Questions

What is Transmission Distance (TD) and why is it important for 3D printing?

Transmission Distance (TD) measures how transparent a filament is, indicating how far light travels through it. This value is critical for advanced 3D printing techniques like HueForge, as it directly impacts color blending and visual effects, ensuring accurate representation of designed gradients and patterns in your prints.

Which filament diameters are compatible with the BIGTREETECH TD1s sensor?

The BIGTREETECH TD1s V1.0 Color and TD Sensor is specifically designed and calibrated for 1.75mm diameter filaments. Using other filament sizes may result in inaccurate or unreliable Transmission Distance and color measurements, affecting the quality of your calibration data and subsequent prints.

Can the BIGTREETECH TD1s be used standalone without a computer connection?

Yes, the BIGTREETECH TD1s V1.0 sensor features a built-in OLED display, allowing it to provide real-time measurement feedback independently. You can perform quick filament checks and capture data directly on the device, powered by its USB-C connection, without needing to connect to a computer.

How does the TD1s sensor specifically help with HueForge printing?

The TD1s sensor is invaluable for HueForge by providing precise Transmission Distance (TD) values and accurate hex color codes for your filaments. HueForge relies on these exact parameters to correctly simulate and blend colors, ensuring your physical prints match the digital design by optimizing transparency and color depth.

Package Includes

  • 1 x BIGTREETECH TD1s V1.0 Color and TD Sensor
  • 1 x USB Cable

Additional Information

Weight 0.023 kg
Dimensions 5.45 × 2.16 cm
