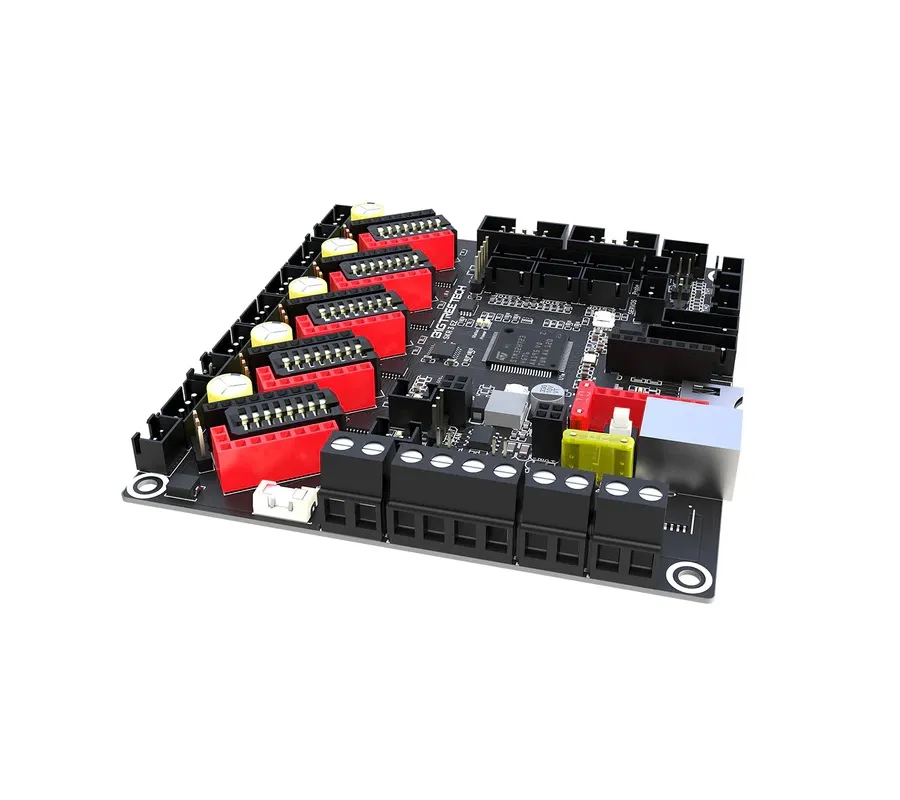

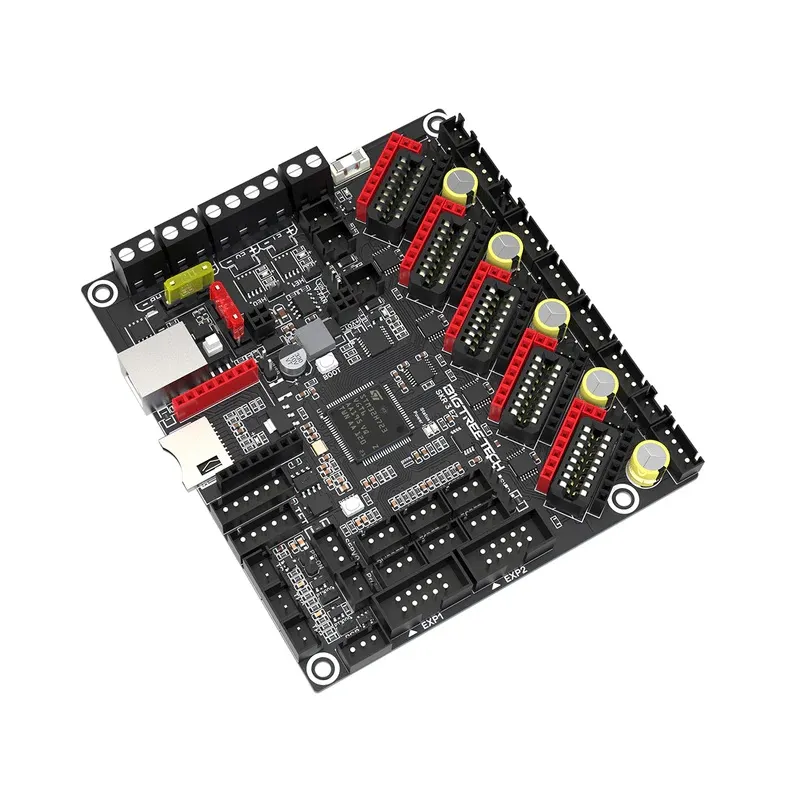

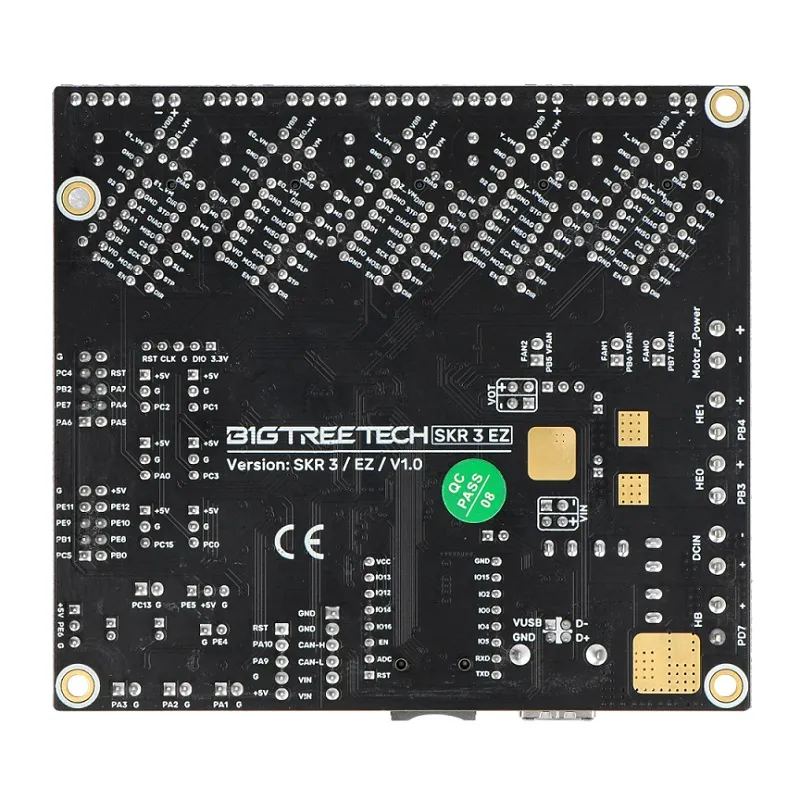

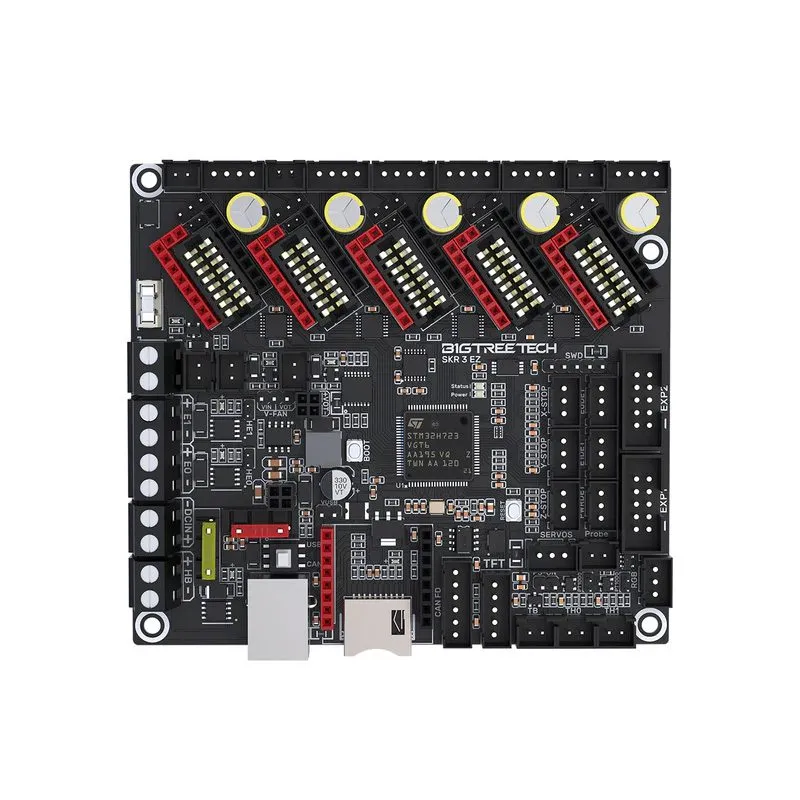

BIGTREETECH SKR 3 EZ V1.0 Control Board for 3D Printers
The BIGTREETECH SKR 3 EZ V1.0 Control Board is a high-performance 32-bit mainboard designed for 3D printers, offering broad compatibility with both EZ series and TMC series stepper drivers. It features an STM32H743VIT6 microcontroller and supports convenient firmware upgrades via SD card, ensuring stable and efficient control for your 3D printing system.
Features
- Features a powerful 32-bit ARM Cortex-M7 STM32H743VIT6 microcontroller running at 480MHz for superior processing.
- Ensures broad compatibility with both BIGTREETECH EZ series and standard TMC series stepper motor drivers.
- Simplifies firmware updates and configuration via SD card for effortless system management.
- Includes on-board DIAG function pins and high-performance MOSFETs for reduced heat and enhanced reliability.
- Supports advanced features like resume printing, filament runout detection, and BLTouch for improved print success.
Out of stock
The BIGTREETECH SKR 3 EZ V1.0 motherboard represents a significant advancement in 3D printer control, building upon the robust SKR 3 platform. This 32-bit mainboard is engineered to accommodate BIGTREETECH’s innovative EZ series drivers as well as the industry-standard TMC series drivers, providing unparalleled flexibility for various 3D printer configurations. Its power architecture, featuring the TPS5450-5A chip, accepts a wide DC12/24V input and delivers up to 5A output current (6A peak), making it perfectly suited to power auxiliary components like the Raspberry Pi.
At its core, the SKR 3 EZ V1.0 boasts a high-performance 32-bit ARM Cortex-M7 series STM32H743VIT6 main control chip, clocked at an impressive 480MHz, which delivers greatly improved processing capabilities for complex printing tasks. This advanced board supports essential 3D printing functions such as resume printing, precise filament runout detection, automatic completed shutdown, BLTouch auto-leveling, and RGB lighting. Furthermore, it incorporates a dedicated BOOT button for DFU updates and an enhanced thermistor protection circuit, safeguarding the main control chip against potential damage from heated bed or rod leakage, ensuring long-term reliability and accurate temperature control.
Additional Information
| Weight | 0.116 kg |
|---|---|
| Dimensions | 10.8 × 9.6 cm |
