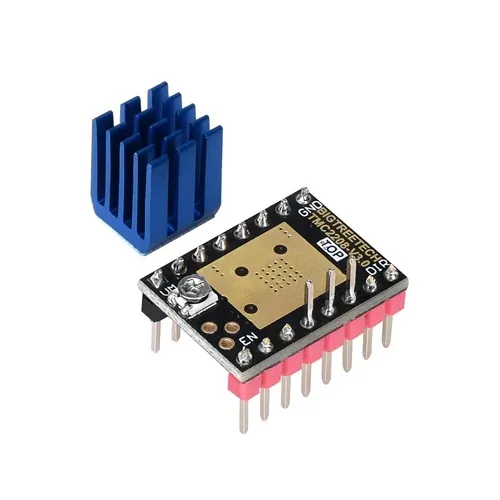

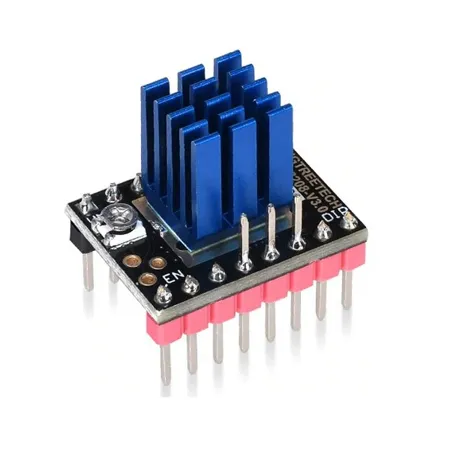

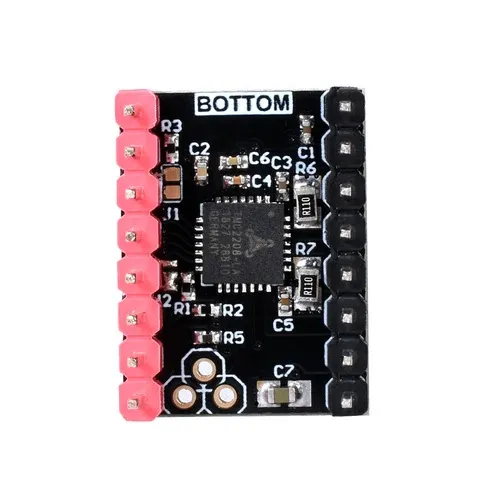

BIGTREETECH BTT TMC2208 V3.0 UART Stepper Motor Driver

Description

The BIGTREETECH BTT TMC2208 V3.0 UART is an advanced stepper motor driver module designed to significantly enhance the performance and reduce the noise of two-phase stepper motors in applications such as 3D printers and small CNC machinery. Its core technology, StealthChop2, ensures exceptionally quiet operation, providing a more pleasant working environment. This module also incorporates SpreadCycle, a high-speed and high-dynamics chopper mode that effectively prevents step loss and motor jitter, ensuring consistent and accurate motion.

This TMC2208 V3.0 driver supports a continuous drive current of 1.2A and a peak current of 2A, operating within a versatile voltage range of 4.75V to 36V. A key advantage of the BIGTREETECH design is its immersional gold finishing, which generates approximately 30% lower heat compared to competing TMC2208 versions. This superior thermal management translates into enhanced durability and a longer operational lifespan for the driver. Configurable in UART mode, the module allows for advanced settings adjustments through jumper caps on compatible control boards, simplifying integration without the need for extensive hardware or software redesigns.
