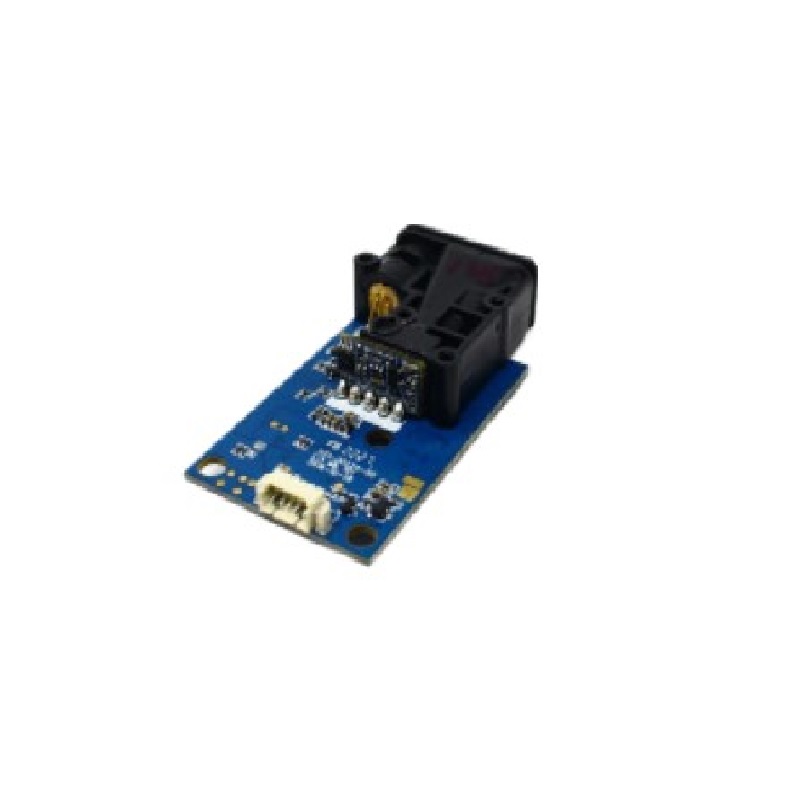

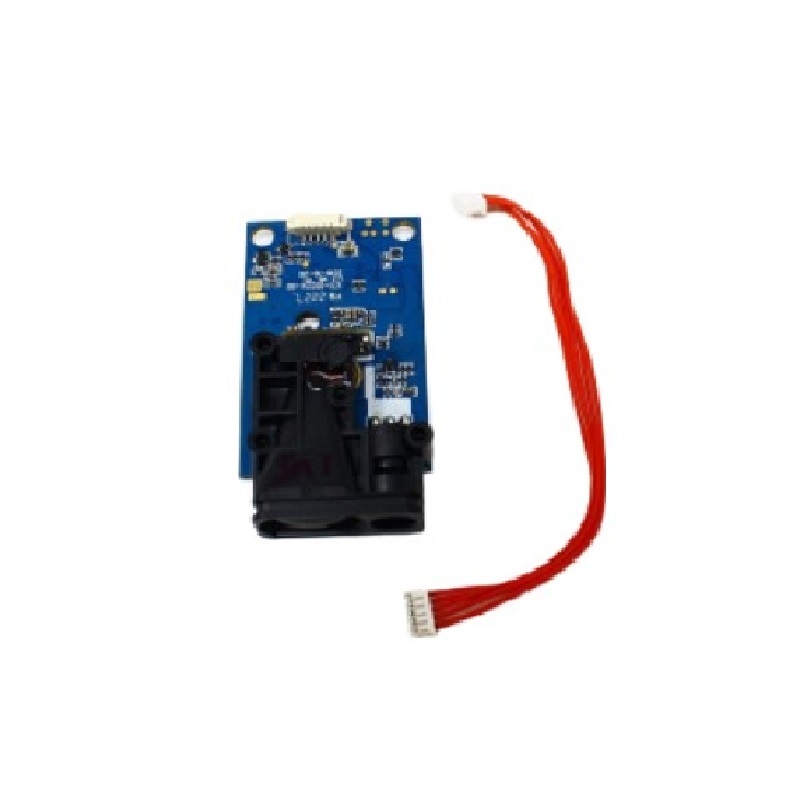

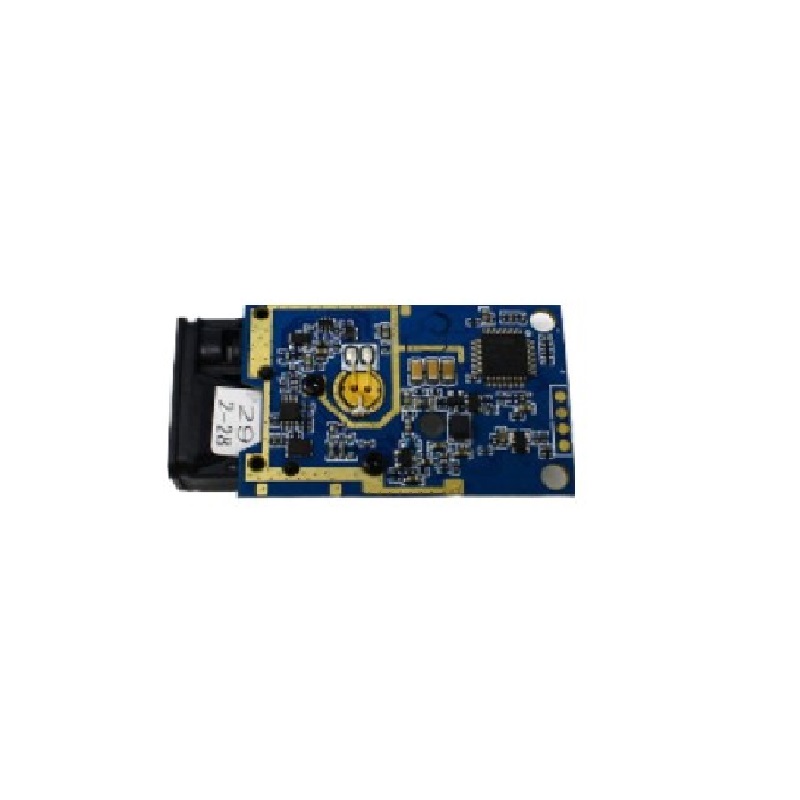

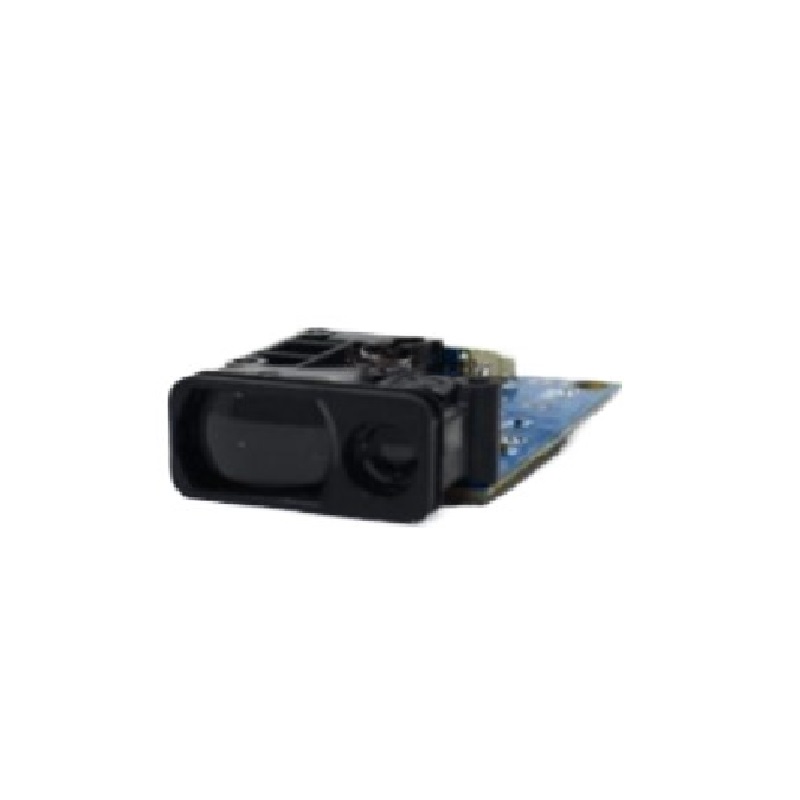

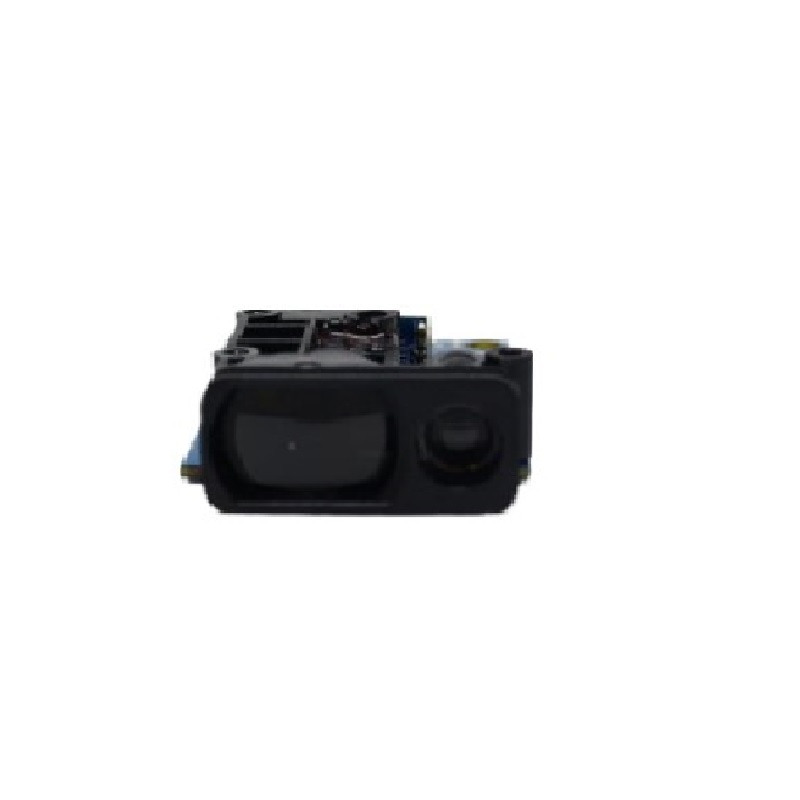

Benewake TF40-S LiDAR Sensor (Range: 0.05-40m, 5Hz Frame Rate) - UART Interface
The Benewake TF40-S is a high-precision Time-of-Flight (ToF) LiDAR sensor module offering a 0.05 to 40-meter measurement range with ±2mm accuracy. It features a 3.3V LVTTL UART interface for easy integration with microcontrollers like Arduino, Raspberry Pi, and ESP32, and is housed in a compact, IP65-rated enclosure for reliable operation in diverse environments.
Features
- High-precision ToF LiDAR with a 0.05m to 40m measurement range and ±2mm accuracy.
- Compact, robust design with an IP65 environmental protection rating for dust and water resistance.
- 3.3V LVTTL UART serial interface with a 9600 baud rate for straightforward microcontroller integration.
- Low power consumption, drawing ≤180mA average current for energy-efficient operation.
- 635nm laser source with a 5Hz frame rate suitable for robotics, mapping, and industrial automation.
Out of stock
The Benewake TF40-S LiDAR sensor employs Time-of-Flight (ToF) technology, using a 635nm laser diode to accurately measure distances by calculating the round-trip time of reflected light pulses. This principle enables high-resolution, non-contact ranging from 5 cm up to 40 meters, making it ideal for applications requiring precise spatial awareness.
Designed for system integration, the module operates on a 3.3V DC supply and communicates via a standard UART serial protocol, outputting raw distance data that can be easily parsed by common development platforms. Its IP65-rated housing ensures reliable performance in environments with dust exposure and low-pressure water jets, supporting deployment in both indoor and outdoor settings.
Additional Information
| Weight | 0.045 kg |
|---|---|
| Dimensions | 12 × 14 × 2 cm |
