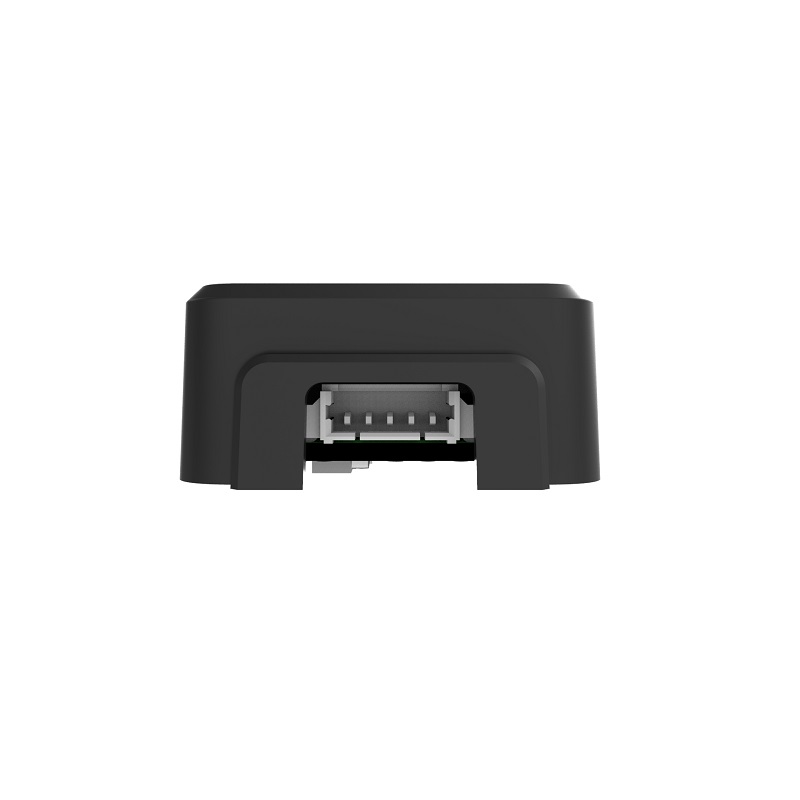

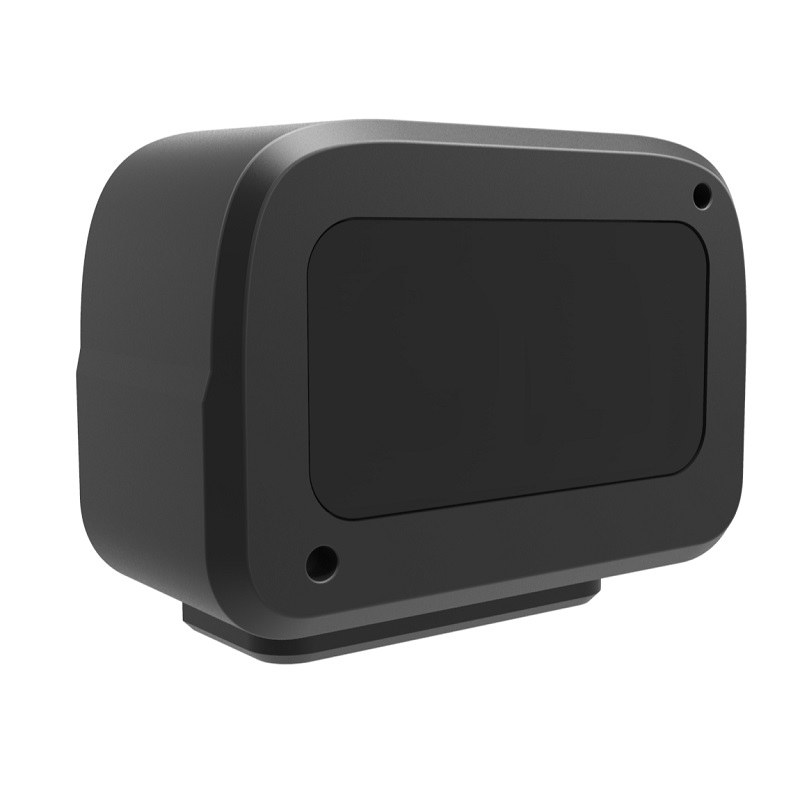

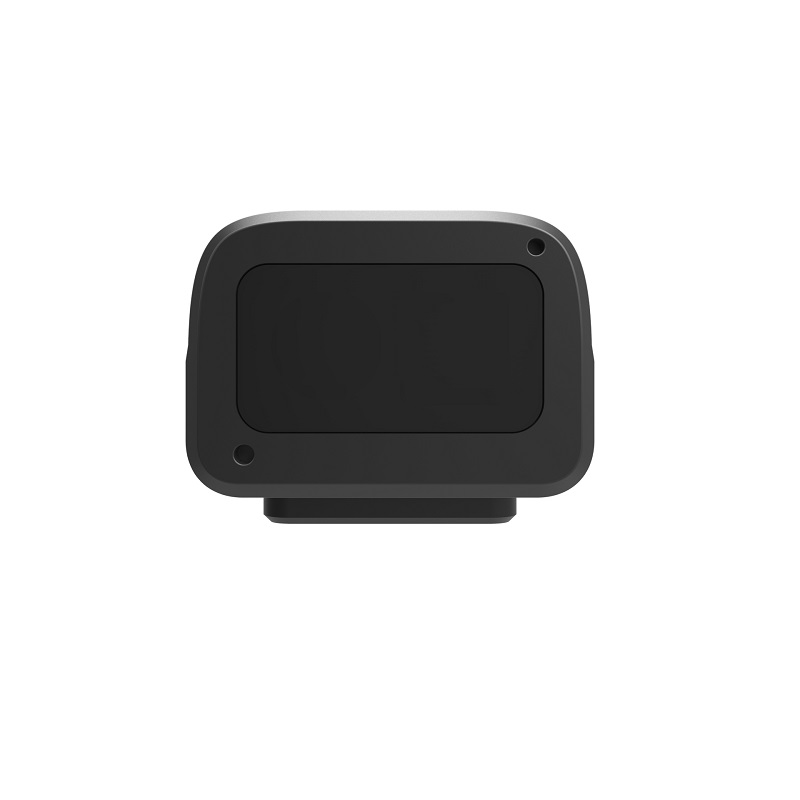

Benewake TF-Nova Sensor Line Pattern Laser Beam LiDAR Sensor (Range: 0.1-14m) - UART/I2C/I/O
The Benewake TF-Nova Sensor is a compact line-pattern LiDAR sensor offering a 0.1 to 14m detection range, designed for integration into robotics, automation, and autonomous systems. It provides stable, high-frame-rate distance data via UART, I2C, or configurable I/O interfaces, compatible with common 5V microcontrollers and embedded platforms.
Features
- Line Pattern Laser Beam with 14°×1° Field of View for precise area detection.
- Extended range from 0.1m to 14m with ±3cm accuracy within 0.1-4m.
- Compact form factor (26.5×21.05×12 mm) for easy integration into space-constrained designs.
- Supports multiple interfaces: UART, I2C, and configurable I/O output modes.
- Operates reliably in varied lighting conditions, from bright sunlight to complete darkness.
Out of stock
The TF-Nova Sensor utilizes a line-pattern laser beam LiDAR (Light Detection and Ranging) principle to deliver precise distance measurements across a 14° horizontal by 1° vertical field of view. This focused pattern enables accurate detection of objects and surfaces, making it suitable for terrain profiling and obstacle mapping. Its advanced optical design ensures reliable performance against targets with low reflectivity, even under challenging ambient light conditions up to 100Klux.
Engineered for industrial and mobile robotics environments, the sensor operates across a wide temperature range from -25°C to +70°C. It provides configurable frame rates from 1Hz to 900Hz (default 100Hz), allowing system designers to balance data refresh rate against processing load. The integrated signal processing delivers stable, repeatable measurements with a resolution of 1cm, supporting precise control and navigation tasks.
Additional Information
| Weight | 0.006 kg |
|---|---|
| Dimensions | 2.65 × 2.105 × 1.2 cm |
