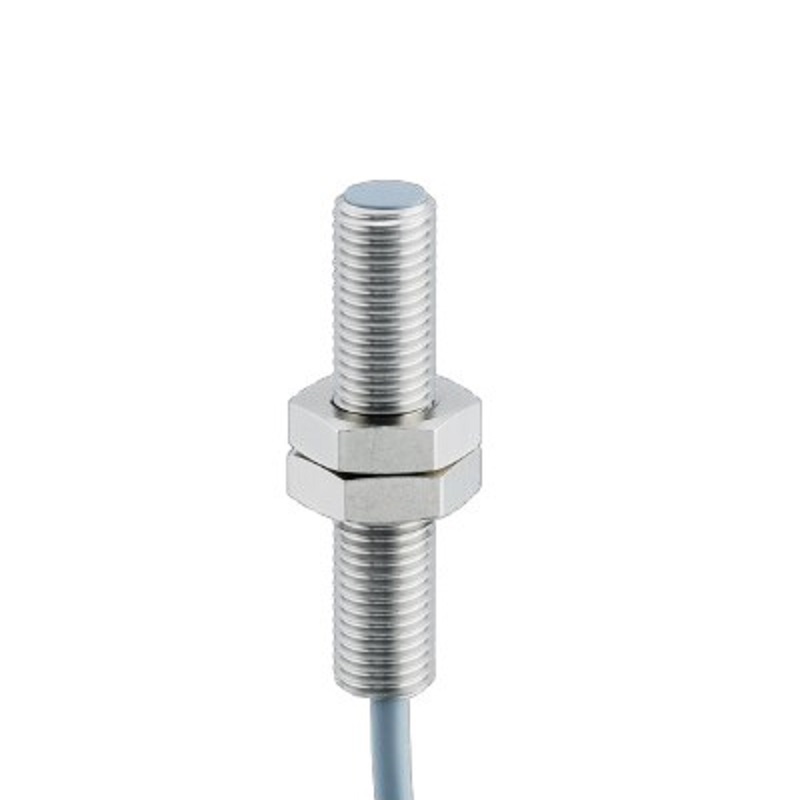

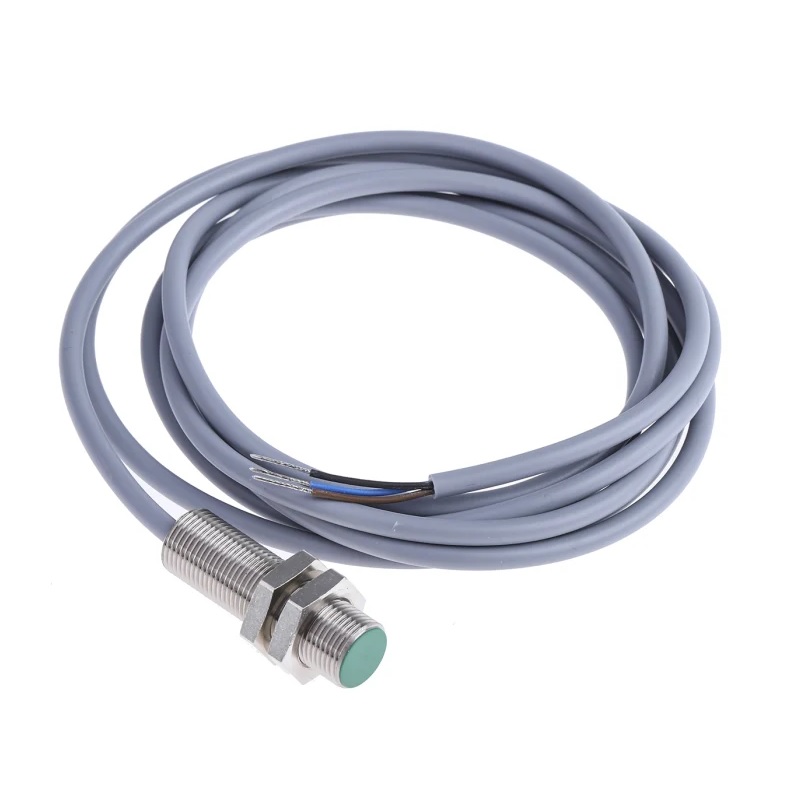

Baumer IFRM 08P17A1/L Proximity Sensor, 2mm Range, 5 kHz, PNP NO, Flush Mount

Name: Baumer IFRM 08P17A1/L Proximity Sensor, 2mm Range, 5 kHz, PNP NO, Flush Mount
Brand: Baumer
SKU: SENS-1282
Price: 1409.00 INR
Availability: OutOfStock

₹1,409.00 (Inclusive of all taxes)

Out of Stock

The Baumer IFRM 08P17A1/L is a flush-mount inductive proximity sensor with a 2mm nominal sensing range and a PNP normally-open (NO) output. Operating from a 6-36 VDC supply, it delivers a high 5 kHz switching frequency for fast object detection, making it compatible with industrial PLCs, automation controllers, and 24V DC systems.

Features

Inductive proximity sensor with a precise 2 mm nominal sensing distance.
High-speed PNP (sourcing) output with a 5 kHz switching frequency for rapid detection cycles.
Robust stainless steel housing ensures durability in demanding industrial environments.
Wide operating voltage range of 6-36 VDC for flexible system integration.
IP67 protection rating provides resistance to dust ingress and temporary water immersion.

Out of stock

Get Notified When Available

Description

The IFRM 08P17A1/L is an inductive proximity sensor designed for precise non-contact detection of metallic objects. Its flush-mount design allows for installation flush with a metal surface, minimizing protrusion and potential damage. The sensor operates on the eddy current principle, generating an electromagnetic field to detect the presence of a conductive target within its 2mm range.

Engineered for industrial reliability, it features built-in short-circuit and reverse polarity protection to safeguard both the sensor and the connected control system. The stainless steel housing and IP67 sealing enable consistent operation in harsh conditions, including areas with exposure to coolants, oils, and dust. Its -25°C to +75°C operating temperature range ensures performance across a wide variety of factory and machine environments.

Key Features

Flush-mountable inductive sensor for seamless integration into metal structures.
High 5 kHz switching frequency enables detection of fast-moving parts on production lines.
PNP normally-open (NO) output with a 200 mA switching capacity for direct control of relays, solenoids, or PLC inputs.
Stainless steel housing provides excellent mechanical strength and corrosion resistance.
Integrated protection circuits include short-circuit and reverse polarity protection for enhanced system safety.
IP67 protection class ensures reliable operation in dusty conditions and can withstand temporary immersion in water.
Wide operating temperature range from -25°C to +75°C for use in challenging thermal environments.

Applications

Position verification of metal components in automated assembly and packaging machinery.
End-of-travel or limit sensing for pneumatic cylinders and linear actuators in factory automation.
Presence detection of metallic parts on high-speed conveyor belts and sorting systems.
Machine tool monitoring for tool breakage detection or part clamping confirmation.
Safety interlock systems in enclosures and guards where non-contact metal detection is required.

Technical Specifications

Model Number	IFRM 08P17A1/L
Sensing Principle	Inductive
Mounting Style	Flush
Nominal Sensing Distance	2 mm
Output Type	PNP, Normally Open (NO)
Max Output Current	200 mA
Switching Frequency	5 kHz
Supply Voltage	6 - 36 VDC
Housing Material	Stainless Steel
Protection Rating	IP67
Operating Temperature	-25°C to +75°C

Frequently Asked Questions

What is the output configuration of the Baumer IFRM 08P17A1/L sensor?

This sensor features a PNP (sourcing) output in a normally-open (NO) configuration. This means the output switch closes (provides a positive voltage) when a metal target is detected within the 2mm sensing range. It can sink up to 200 mA, making it suitable for directly interfacing with PLC digital inputs or small relays.

Can this sensor be used for detecting non-metallic objects?

No, the IFRM 08P17A1/L is an inductive proximity sensor, which is specifically designed to detect ferrous and non-ferrous metals. It will not reliably detect plastics, wood, glass, or other non-conductive materials. For non-metallic objects, a capacitive proximity sensor would be required.

What does 'flush mounting' mean, and are there any installation considerations?

Flush mounting means the sensor can be installed so its sensing face is level with the surrounding metal mounting surface without a loss of sensing distance. This protects the sensor from mechanical damage. For optimal performance, ensure the surrounding metal area is non-ferrous (like the sensor's stainless steel housing) and follow the manufacturer's recommended clearance distances to adjacent metal.

Is the sensor protected against wiring mistakes?

Yes, the Baumer IFRM 08P17A1/L includes built-in reverse polarity protection and short-circuit protection on the output. These features help prevent damage if the power supply leads are accidentally connected backwards or if the output is shorted to ground, enhancing the sensor's durability in industrial wiring environments.
