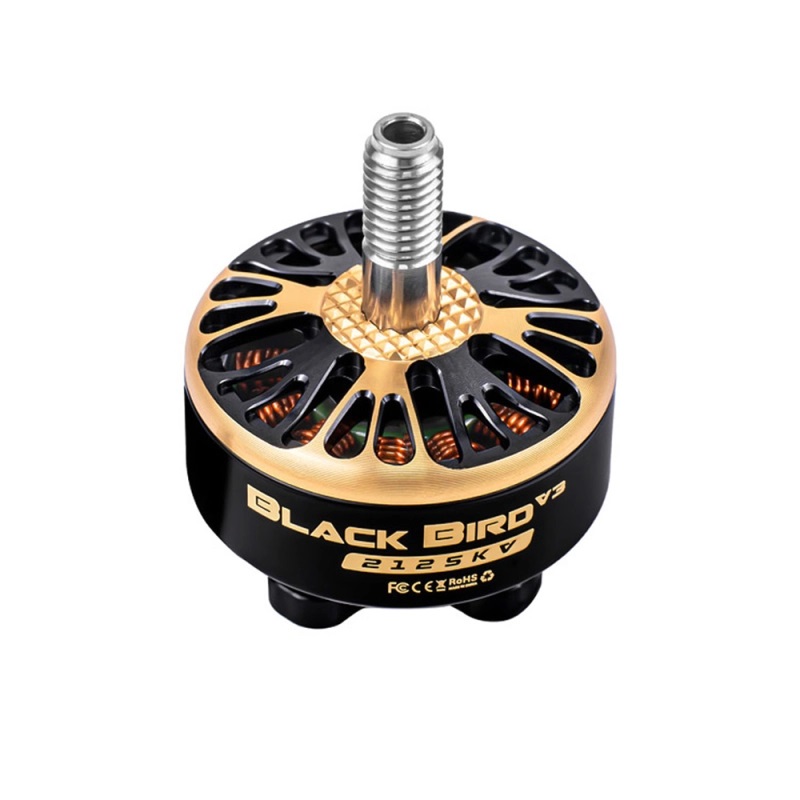

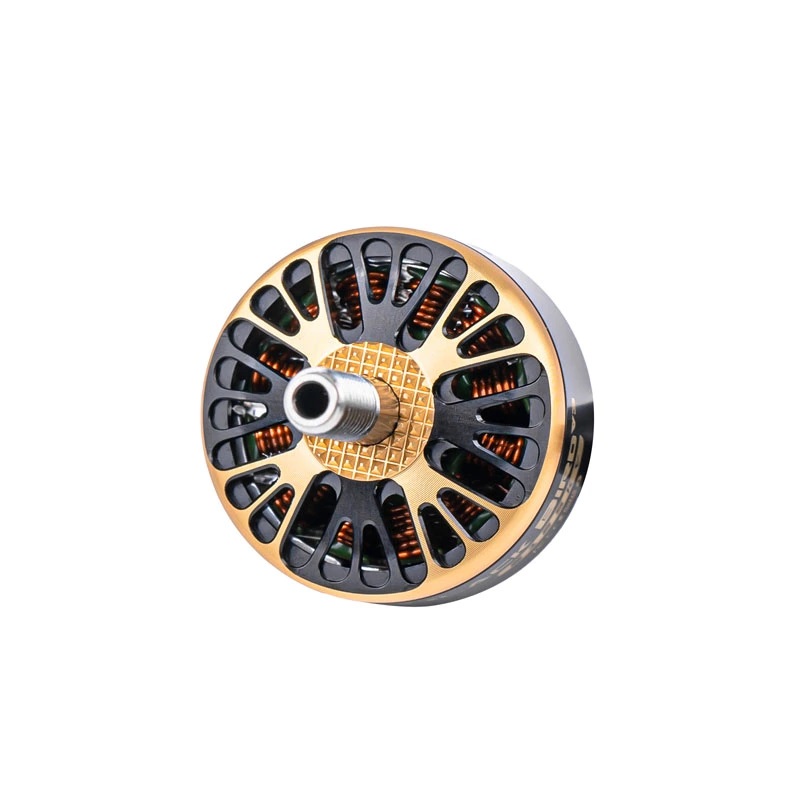

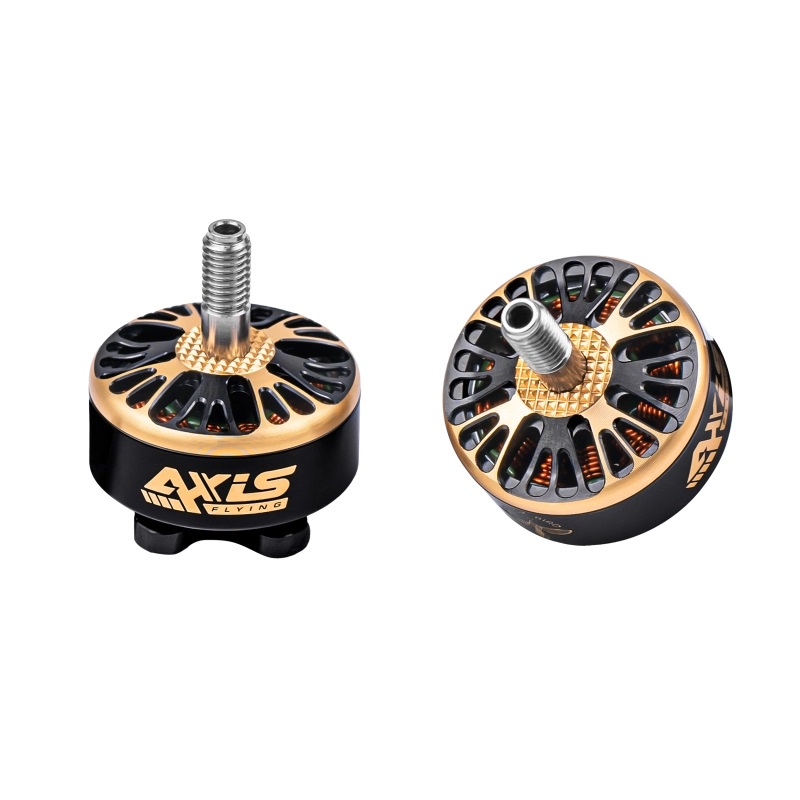

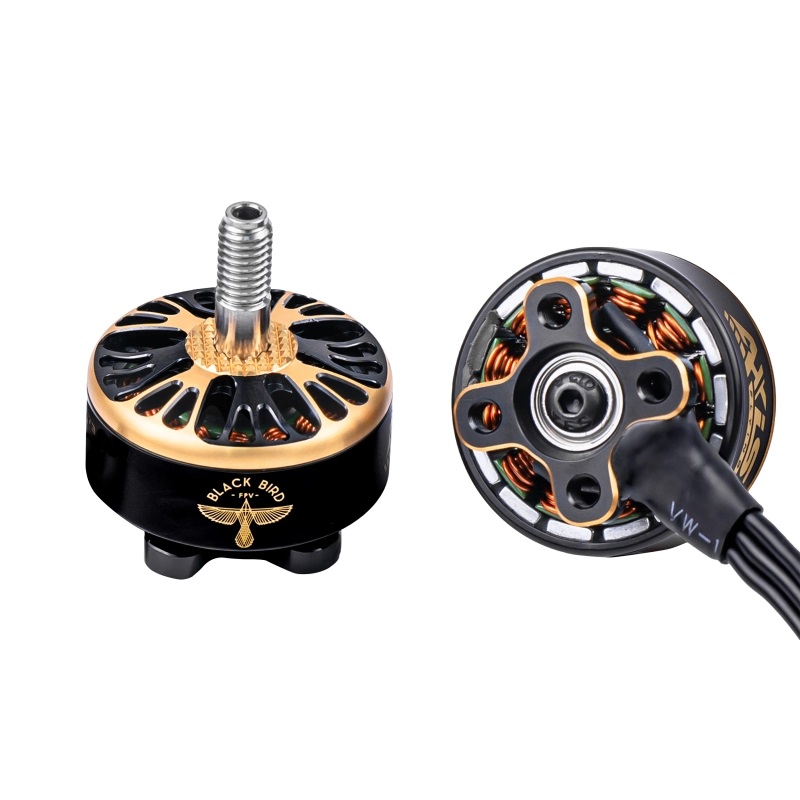

AxisFlying Co-Brand with BlackBird v3 2207 2125KV Brushless FPV Freestyle Motor

This 2125KV motor is optimized for 4S to 6S LiPo batteries. On 4S, it will provide very high RPMs suitable for ultra-responsive racing. On 5S and 6S, it delivers extreme power and top speed, ideal for aggressive freestyle and high-speed passes. Always ensure your Electronic Speed Controllers (ESCs) are rated for the corresponding current and voltage.

This motor is designed for 5-inch propellers (typically 5x4x3 or similar bi-blade/tri-blade designs). The 2207 stator provides ample torque to efficiently spin medium-to-high pitch props. Using larger props (e.g., 6-inch) may overload the motor, while smaller props may not utilize its full power potential and could lead to overheating.

The motor uses a standard 16x16mm M3 mounting hole pattern. It requires four M3 screws for installation, which are compatible with most 5-inch FPV drone frames. The motor shaft diameter is 5mm, so ensure your propellers have a matching 5mm bore or use appropriate adapters.

While highly efficient for its power class, the 2125KV rating is geared towards high-performance rather than maximum endurance. For long-range builds, a lower KV motor (e.g., 1700-1900KV) paired with larger, low-pitch propellers would be more appropriate for extending flight time. This motor excels in dynamic, power-intensive flight profiles.
