SKU: 3DDF-2071
📋 GST Invoice Available

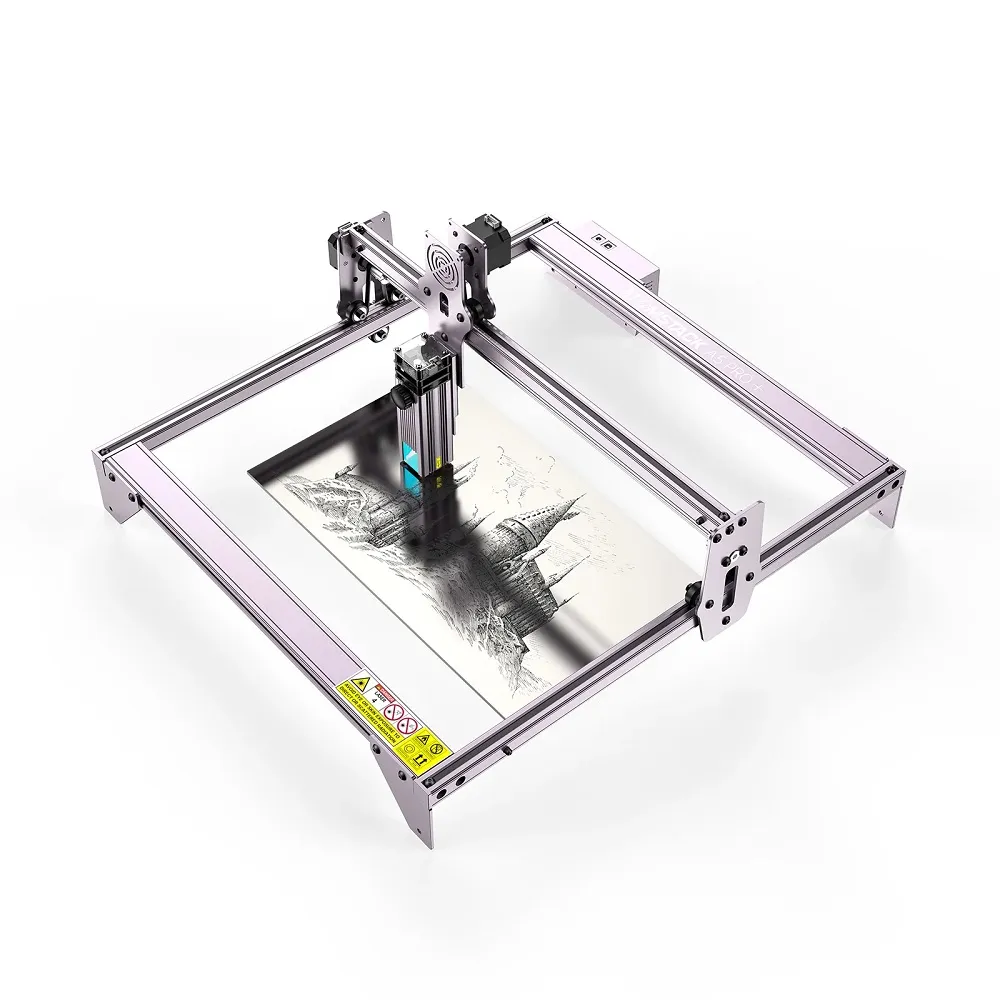

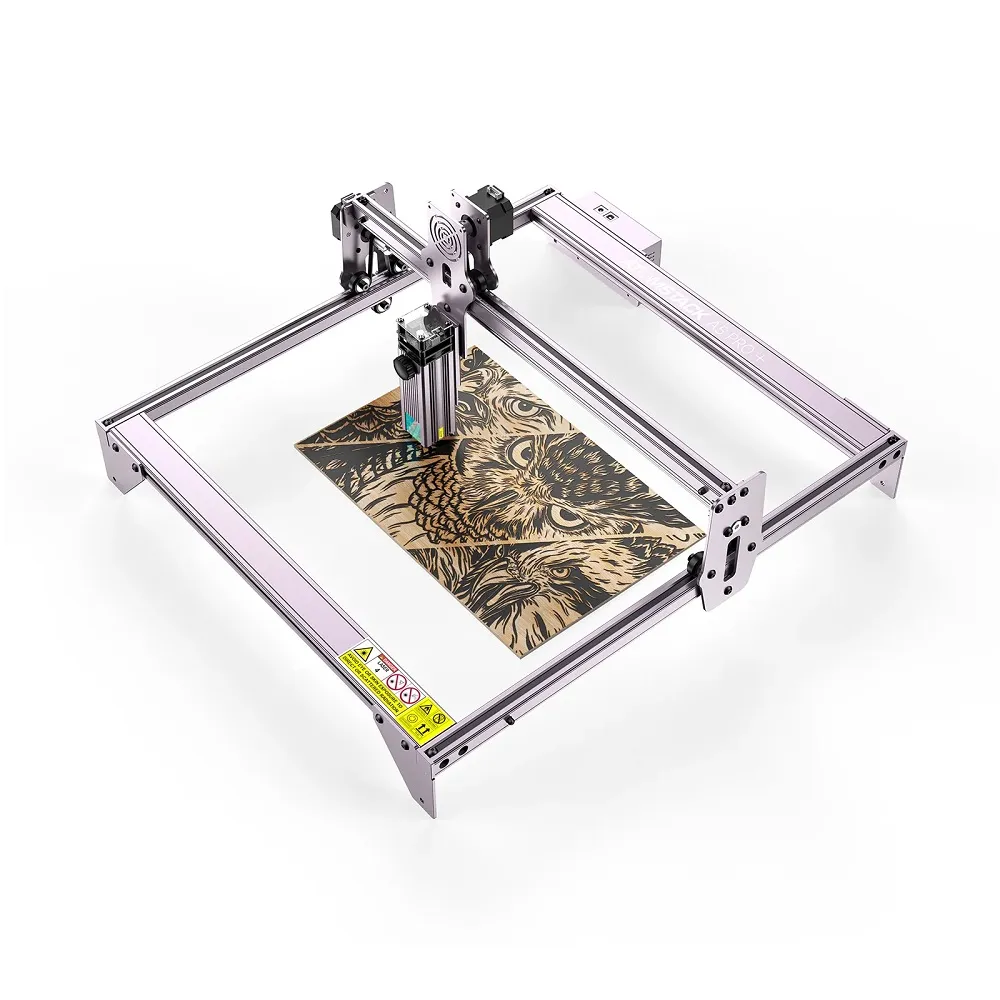

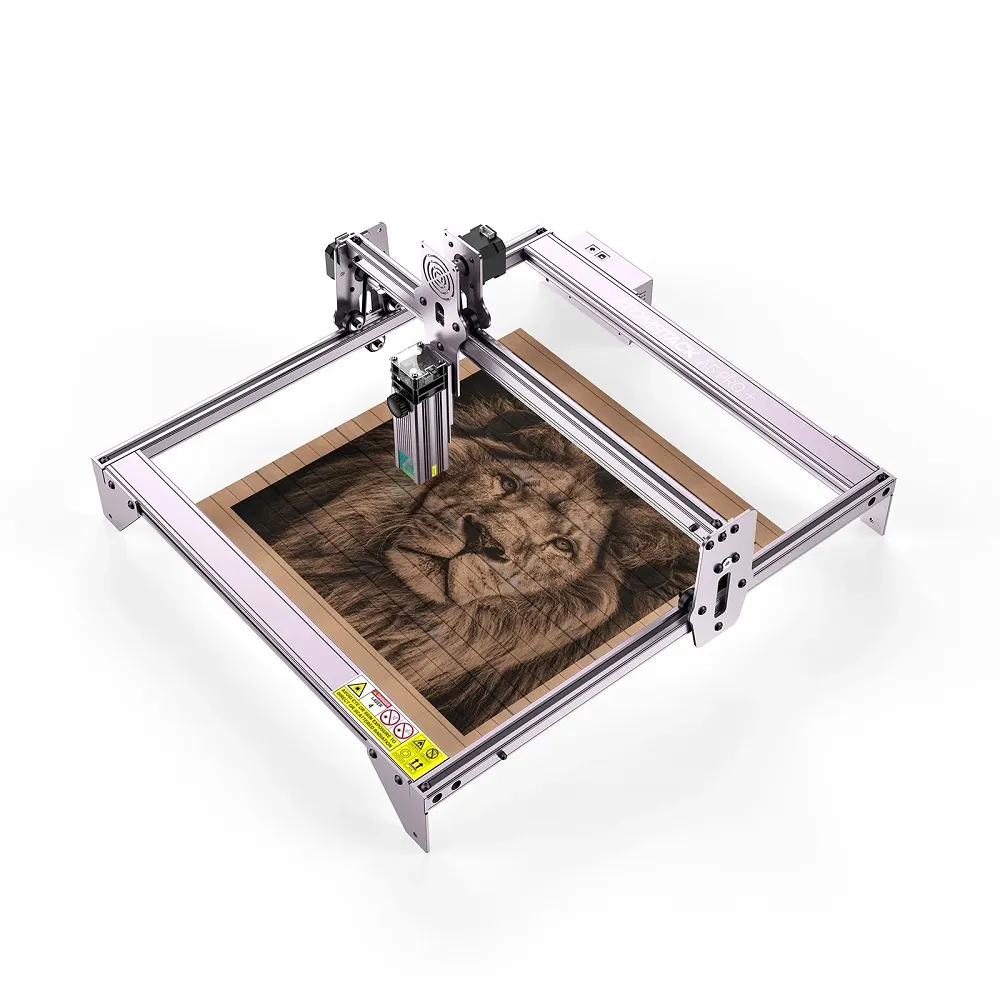

ATOMSTACK A5 PRO+ 40W Laser Engraver & Cutter Machine

₹33,295.00 (Inclusive of all taxes)
Out of Stock

The ATOMSTACK A5 PRO+ 40W is a versatile laser engraver and cutter, offering precise 0.01mm engraving accuracy and a 5-5.5W optical output for a wide range of materials. Featuring a fixed-focus design, it simplifies setup for both creative and technical projects.

Features

  • 5-5.5W optical laser power for precise engraving and cutting tasks.
  • Fixed-focus laser design eliminates manual focusing for faster setup.
  • Achieves exceptional 0.01mm engraving accuracy on diverse materials.
  • Integrated eye protection shield enhances user safety during operation.
  • Supports LightBurn and LaserGRBL for broad software compatibility.

Out of stock

Description

The ATOMSTACK A5 PRO+ 40W Laser Engraver Cutting Machine is engineered for makers and small businesses requiring a high-precision digital fabrication tool. This robust system integrates a powerful 40W machine with a 5-5.5W optical output laser, capable of both intricate engraving and efficient cutting across a broad spectrum of materials. Its fixed-focus design ensures consistent performance and reduces setup time, making it accessible for both beginners and experienced users.

Designed for reliability and user safety, the A5 PRO+ features an integrated protective cover over the laser module, safeguarding users’ eyes and preventing accidental contact with the laser spot. This thoughtful addition eliminates the need for external safety glasses in many scenarios, promoting a safer working environment. The machine’s capability to engrave on materials like wood, bamboo, plastic, leather, and mirror stainless steel, coupled with its cutting prowess on thin wood chips, acrylic, and MDF, positions it as a versatile asset for various creative and prototyping endeavors.

Key Features

  • Fixed-focus laser module eliminates the need for manual focusing, ensuring consistent performance.
  • Versatile engraving capabilities on wood, bamboo, cardboard, plastic, leather, MDF, slate, lacquered metal, and mirror stainless steel.
  • Efficient cutting for materials such as cardboard, non-woven fabric, thin wood chips, acrylic, sponge, MDF, and leather.
  • Integrated protective cover on the laser module ensures user eye safety without additional glasses.
  • High engraving accuracy of 0.01mm for detailed and precise outputs.
  • Wide software compatibility including LightBurn and LaserGRBL via USB connection.
  • Supports multiple file formats like NC, BMP, JPG, PNG, and DXF for seamless workflow.

Applications

  • Precision engraving on wood, bamboo, plastic, leather, and mirror stainless steel for artistic projects.
  • Cutting thin wood, acrylic, cardboard, and MDF for model making and prototyping.
  • Customization of consumer products, signage, and decorative items.
  • Educational and hobbyist use for learning laser fabrication techniques.

Technical Specifications

Item TypeEngraving Machine, Cutting Machine
Machine Power40W
Laser Output Optical Power5-5.5W
Laser Wavelength455 ± 5nm
Model No. / NameA5 PRO+
Power Supply100-240V AC, 50/60Hz input; 12V 5A output
Engraving Accuracy0.01mm
Focusing MethodFixed-focus laser
Supported SoftwareLightBurn, LaserGRBL
Supported File FormatsNC, BMP, JPG, PNG, DXF
Data TransmissionUSB connection
OS SupportWin XP/Win 7/Win 8/XP/Win 10

Frequently Asked Questions

What is the actual optical power output of the Atomstack A5 PRO+?

The Atomstack A5 PRO+ has a machine power of 40W, but its laser output optical power is between 5-5.5W. This optical power is crucial for effective engraving and cutting on various materials, offering a good balance between speed and precision for hobbyist and light industrial applications.

What materials can the A5 PRO+ engrave and cut?

It can engrave wood, bamboo, plastic, leather, slate, and even mirror stainless steel. For cutting, it handles cardboard, non-woven fabric, thin wood chips, acrylic, sponge, and MDF. Its versatility makes it suitable for a wide array of creative and prototyping projects.

Is eye protection necessary with this laser engraver?

The Atomstack A5 PRO+ features an integrated protective cover on the laser module, designed to shield the user's eyes from the laser light. While this significantly enhances safety, it is always recommended to exercise caution and follow all safety guidelines during operation.

What software is compatible with the Atomstack A5 PRO+?

The Atomstack A5 PRO+ supports popular laser control software such as LightBurn and LaserGRBL. These programs offer extensive features for design, layout, and machine control, allowing users to achieve precise and complex engraving and cutting results efficiently across Windows operating systems.

Package Includes

  • 1 x Atomstack A5 PRO+ 40W Laser Engraver Cutting Machine

Additional Information

Weight 5.577 kg
Dimensions 59 × 34 × 12 cm
