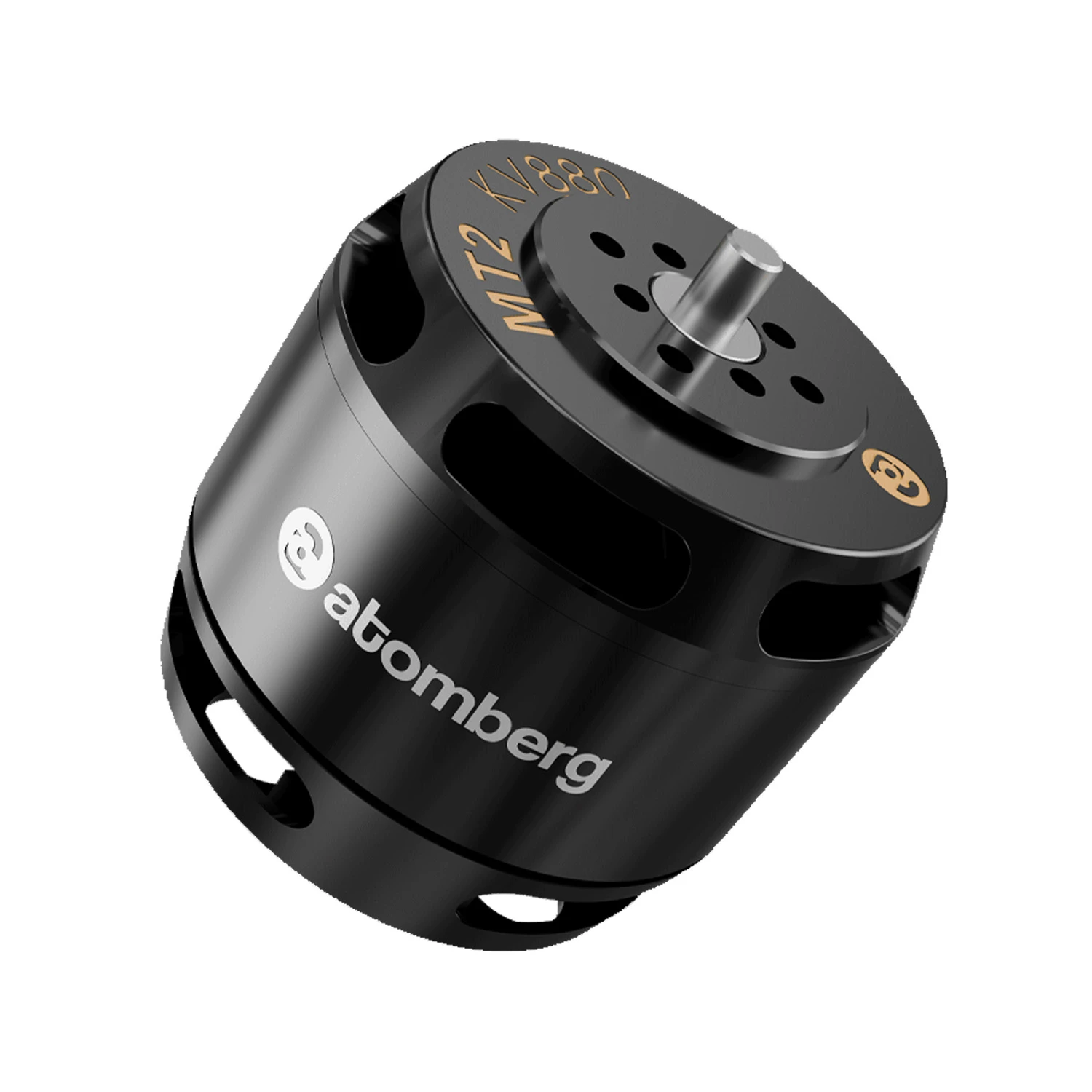

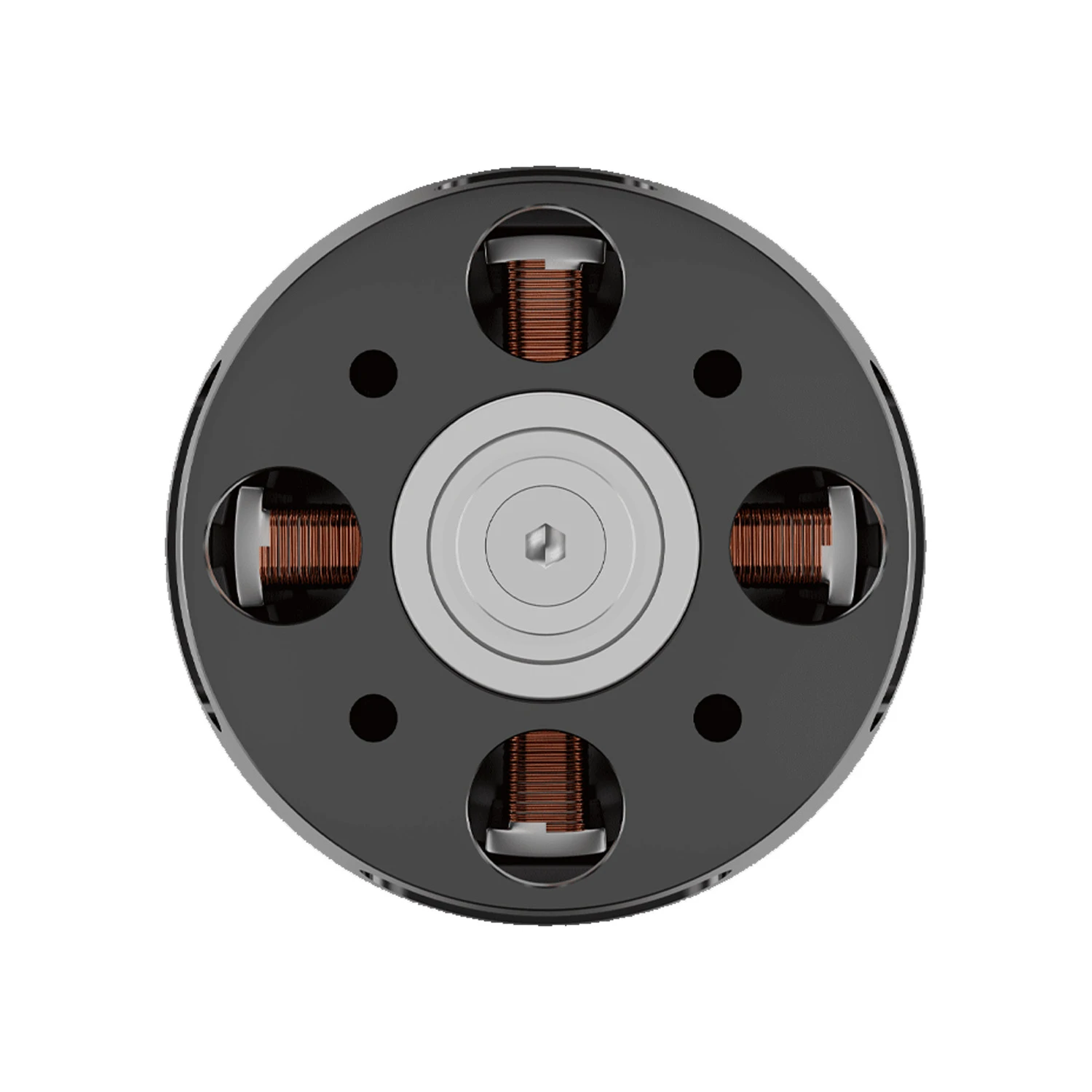

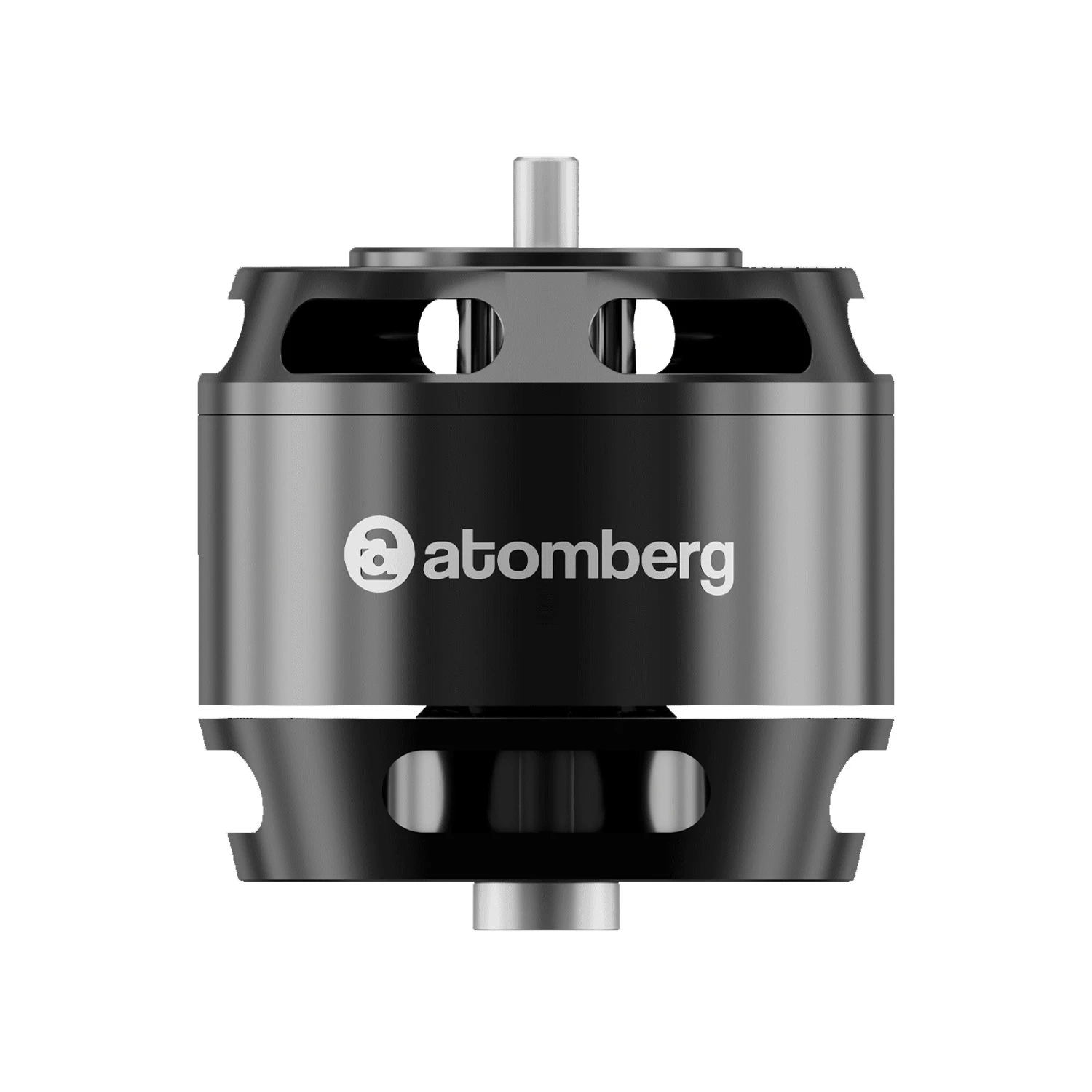

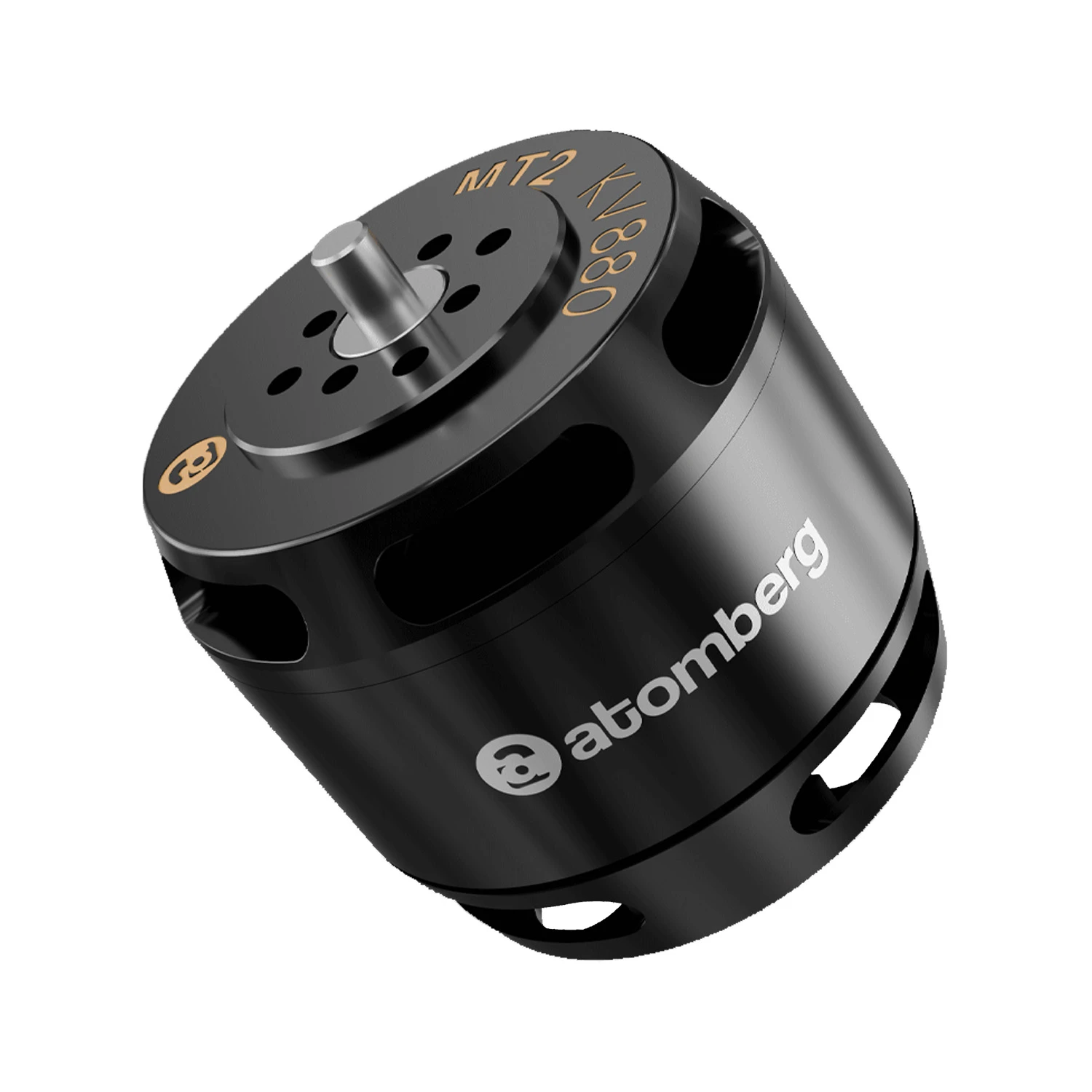

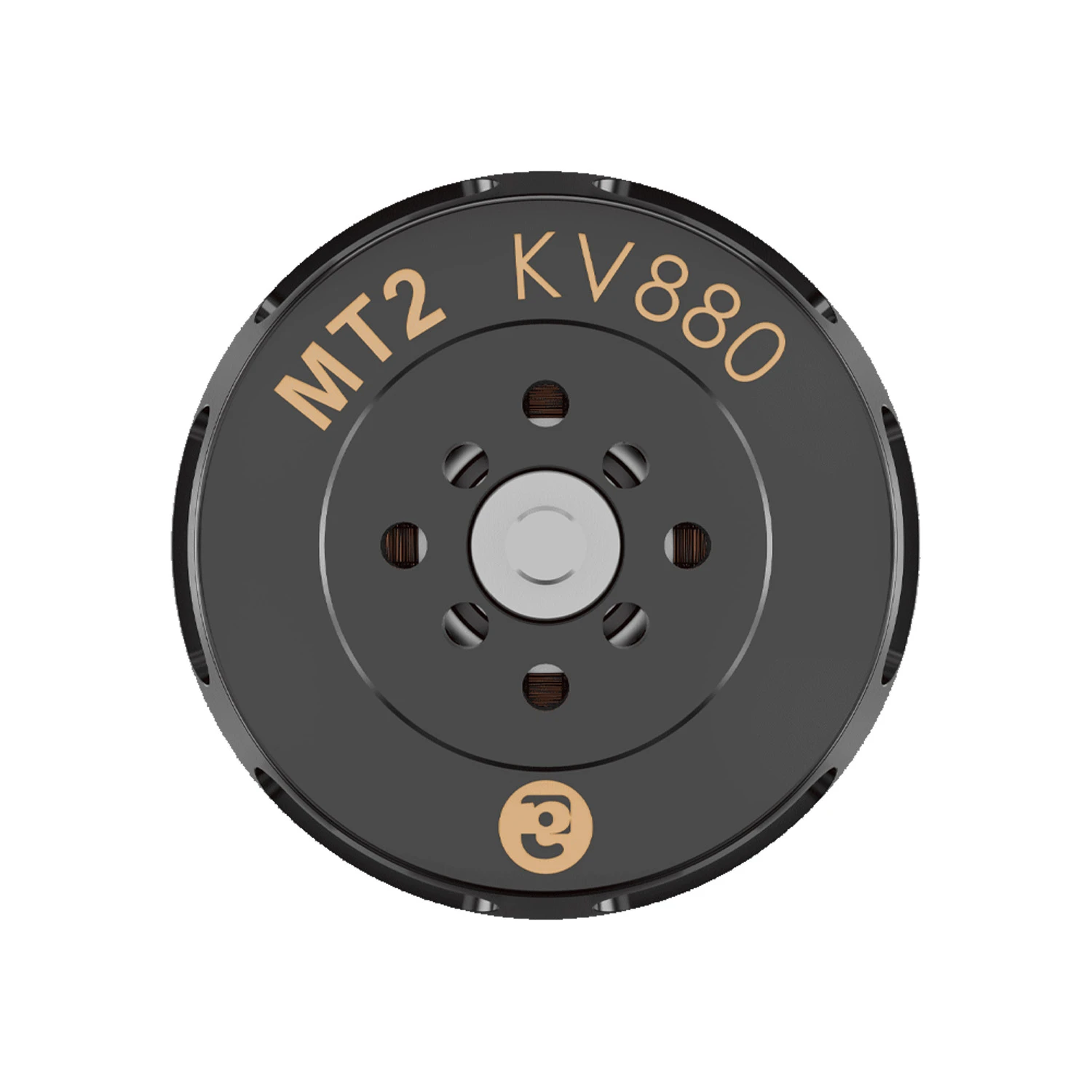

Atomberg MT2 KV880 Drone Motor
The Atomberg MT2 KV880 is a high-performance brushless motor engineered for heavy-lift and long-endurance UAV platforms, delivering up to 3.05 kg of thrust and supporting 3–7S LiPo batteries for demanding professional applications.
Features
- Delivers a maximum thrust of 3050 grams for heavy-payload drone operations.
- Rated for 690W maximum power and a continuous current of 35A.
- Features a 12N14P configuration and low 31.5 mΩ internal resistance for efficient, high-torque performance.
- Compatible with a wide 3–7S LiPo battery range for flexible power system integration.
- Weighs 160g including cables, offering a high power-to-weight ratio for compact builds.
Out of stock
The Atomberg MT2 KV880 is engineered as a robust brushless motor for professional-grade UAVs requiring significant thrust and endurance. Its 12N14P magnetic configuration and low 31.5 mΩ internal resistance are optimized to minimize electrical losses and heat generation, ensuring reliable operation under sustained high loads. The motor’s design prioritizes thermal management and structural integrity for demanding flight profiles.
With a broad 3–7S LiPo compatibility, this motor integrates seamlessly into various aerial platforms, from VTOL aircraft to heavy-lift delivery drones. The 5mm shaft diameter accommodates a wide range of propeller systems, while the customizable cable length (200–600mm) allows for flexible installation in custom frames and industrial drone builds.
Additional Information
| Weight | 0.17 kg |
|---|---|
| Dimensions | 5 × 6 × 4 cm |
