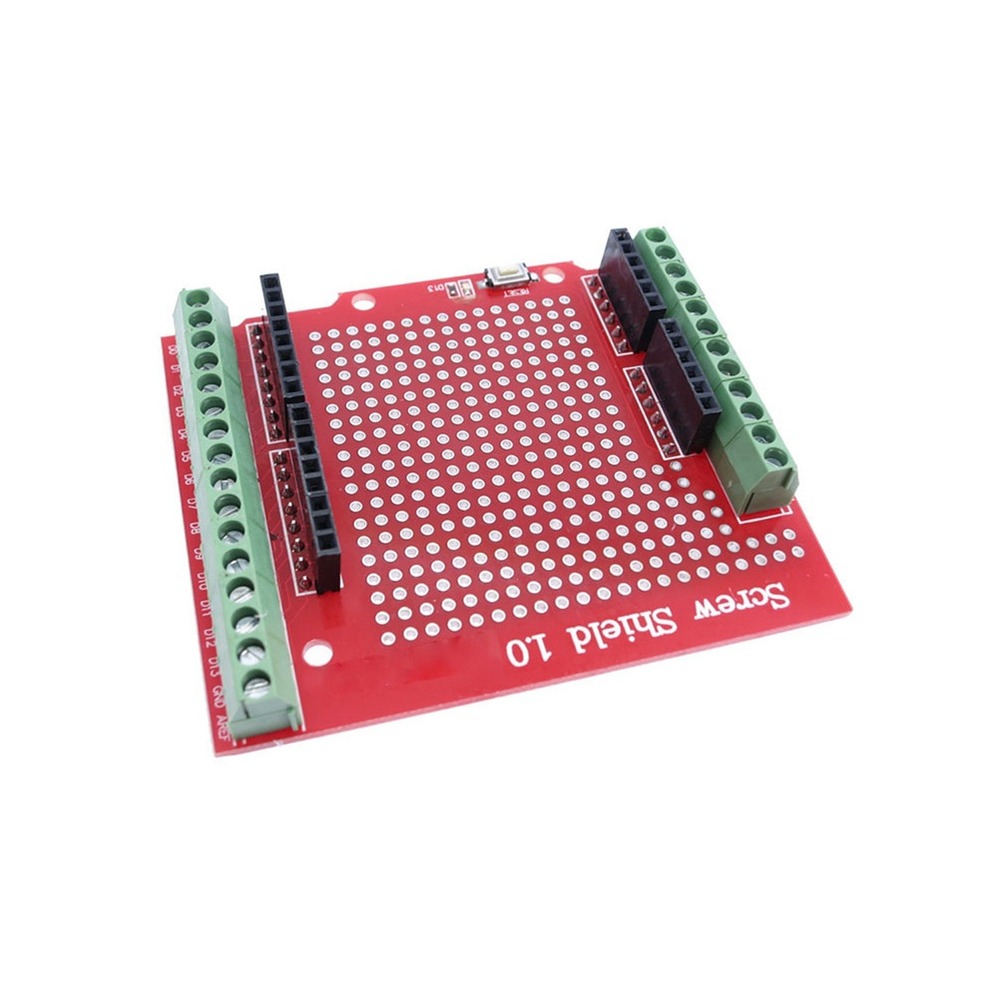

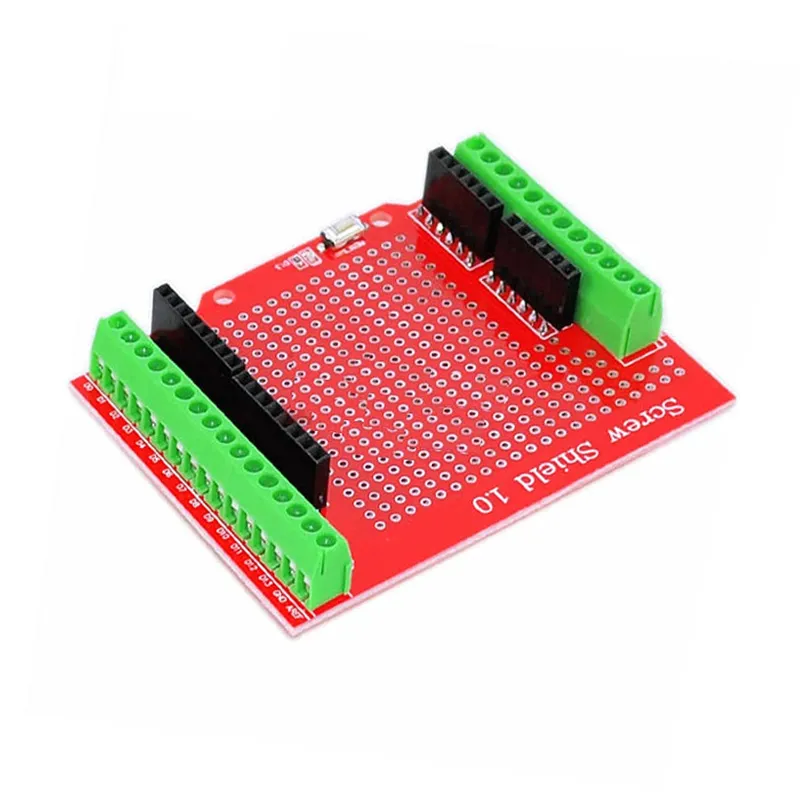

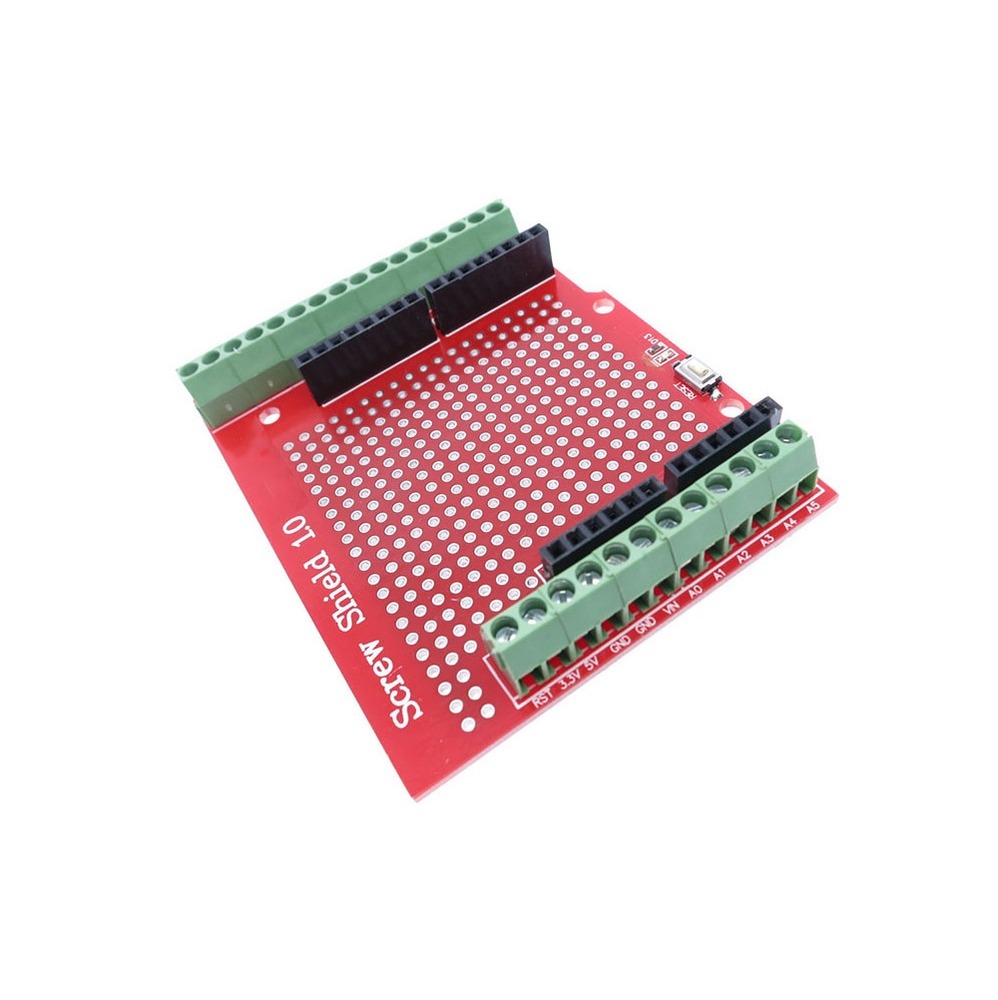

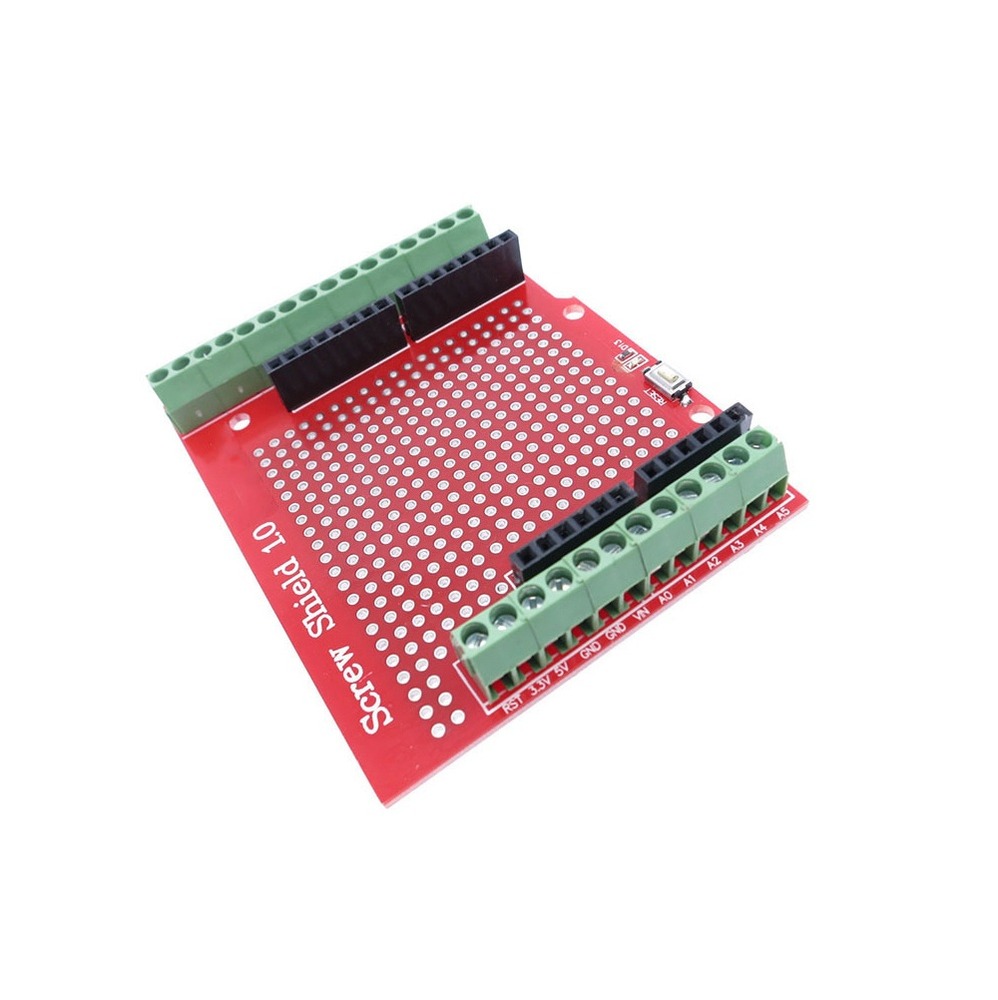

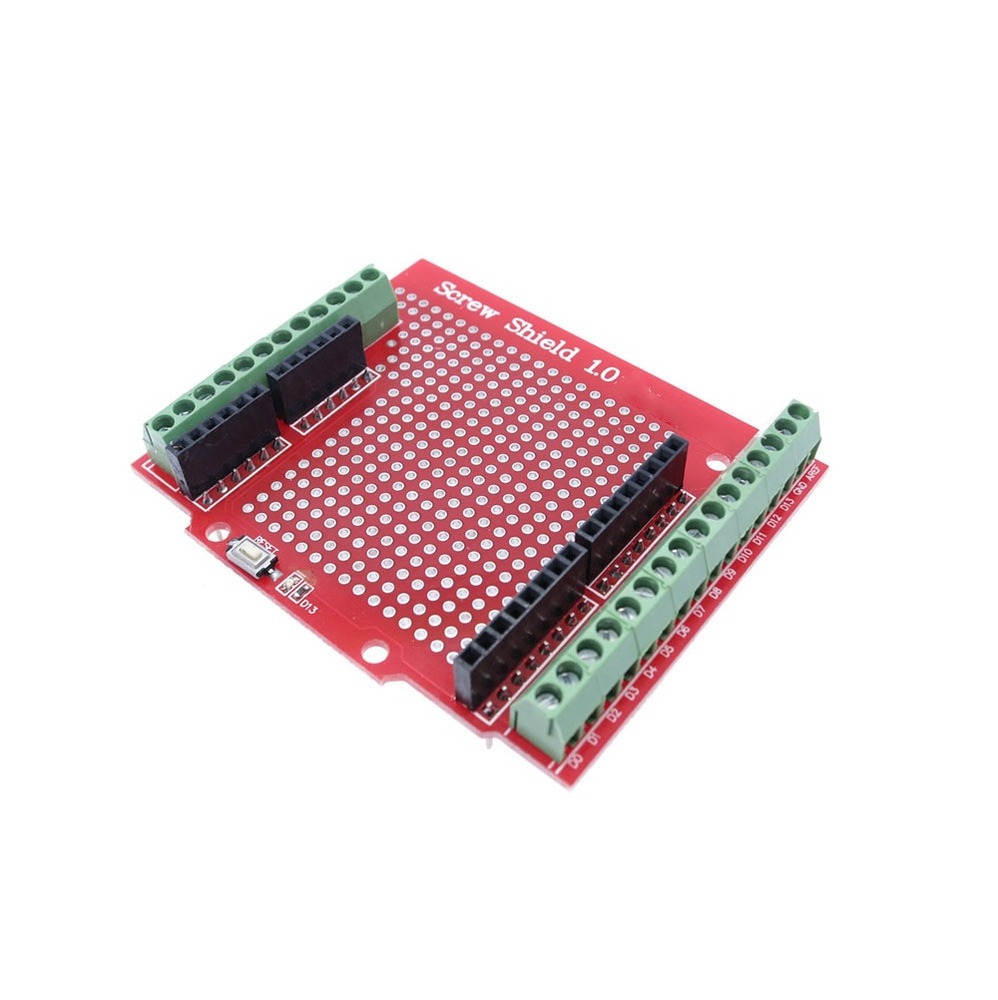

Arduino Uno Proto Screw Shield
The Proto Screw Shield for Arduino Uno provides robust screw terminal blocks for secure I/O connections, essential for industrial and permanent installations. It integrates a versatile prototyping area, allowing direct integration of custom circuits alongside your Arduino Uno.
Features
- Provides secure screw terminal blocks for robust I/O connections.
- Features an integrated prototyping area for custom circuit design and expansion.

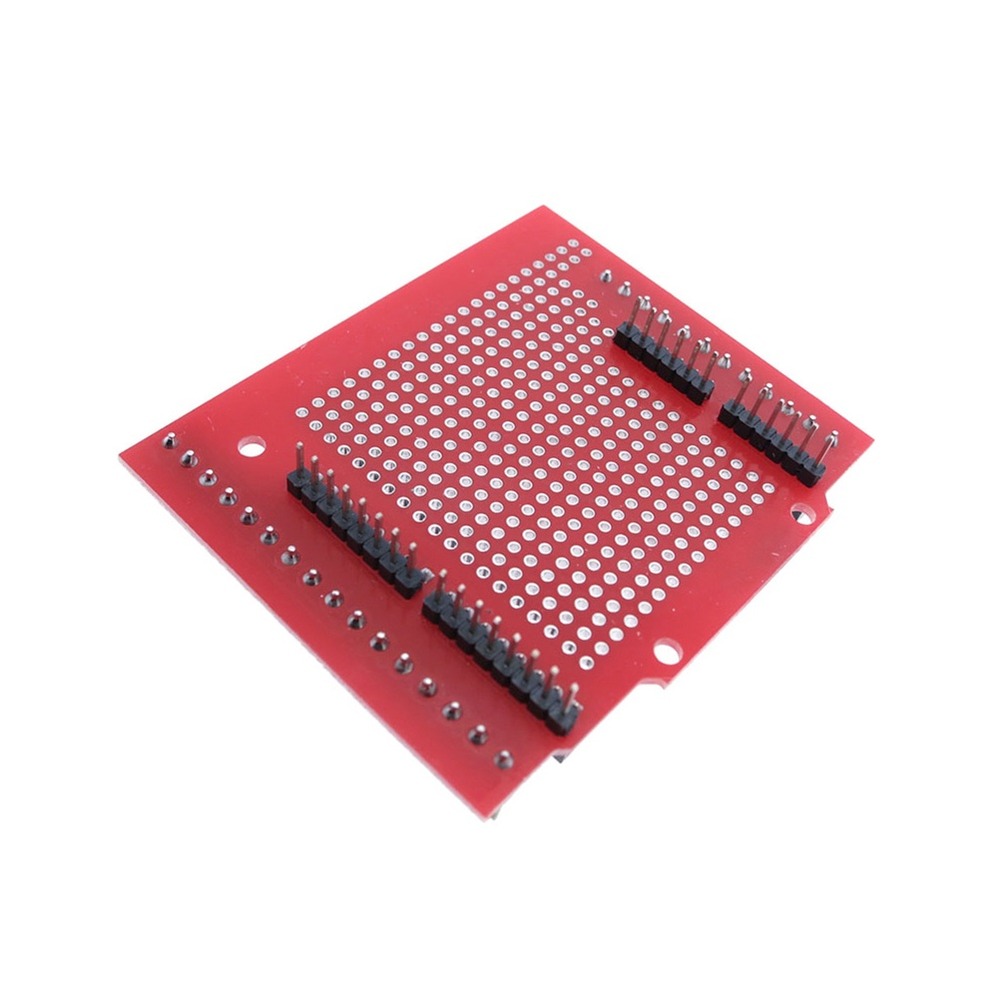

- Double-sided PCB with vias supports flexible component soldering.
- Includes dedicated space for a small breadboard, ideal for quick tests.
- Pre-assembled design ensures direct and easy mounting onto Arduino Uno boards.
Out of stock
The Proto Screw Shield 1.0 for Arduino Uno is an essential accessory for projects requiring robust and secure wiring. It features high-quality 3.81mm pitch screw terminal blocks, allowing for reliable connections of sensors, actuators, and other peripherals without soldering directly to the Arduino pins. This design is particularly beneficial for permanent installations, industrial control, or panel-mounted applications where connection integrity is critical.
Beyond its terminal capabilities, this shield incorporates a comprehensive prototyping area, similar to a standard Proto Shield. This double-sided PCB space includes numerous 0.1″ spaced through-holes, enabling users to solder custom components and create bespoke circuits directly on the board. A dedicated central area accommodates a small breadboard, facilitating easy testing and modification of experimental layouts. The shield comes pre-assembled, ensuring direct and hassle-free integration with any Arduino Uno board, enhancing both development efficiency and project durability.
Additional Information
| Weight | 0.033 kg |
|---|---|
| Dimensions | 8 × 7 × 3 cm |
