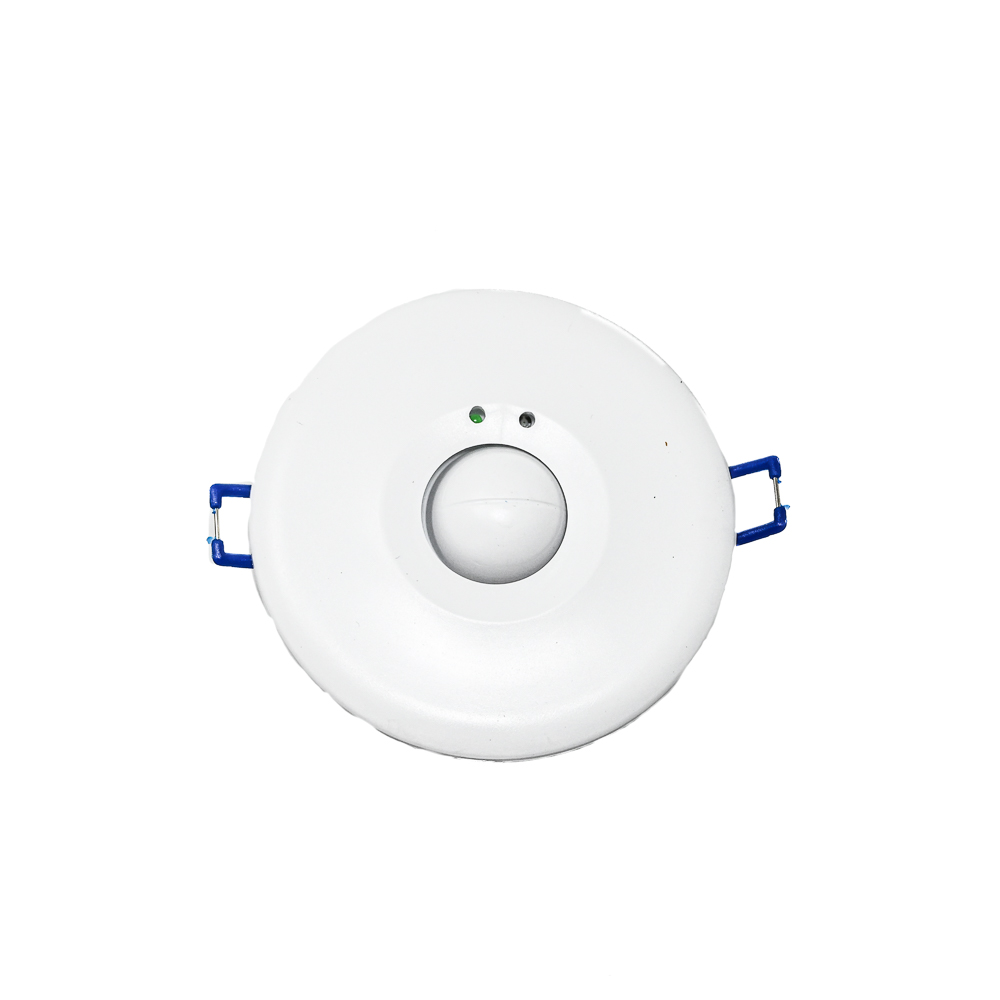

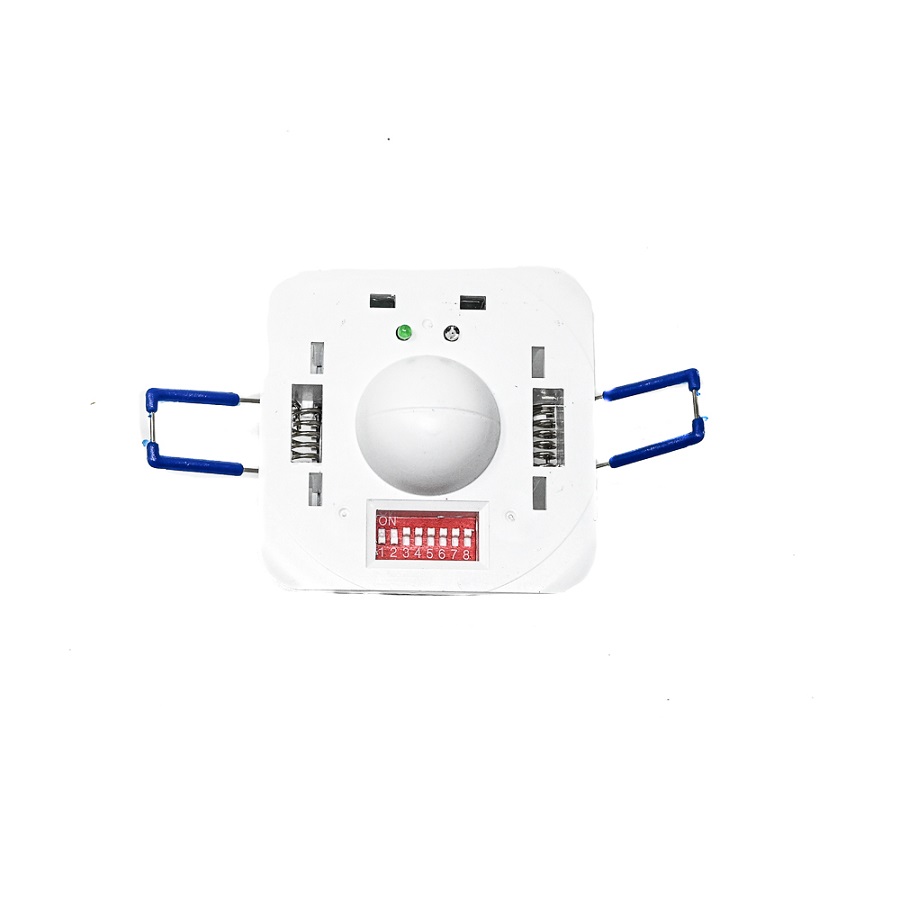

5.8GD05Z Radar Motion Sensor AC220-240V - 360° Coverage, Flame-Retardant ABS
The 5.8GD05Z is an AC-powered (220-240V) microwave radar motion sensor module utilizing 5.8GHz Doppler technology for reliable presence detection. It features 360° coverage, adjustable range (2-8m), and integrates directly with lighting or security systems via its press-type terminal connections.
Features
- 5.8GHz Microwave Radar Technology for precise motion detection through obstacles.
- 360° Wide-Angle Detection Coverage with a configurable range of 2 to 8 meters.
- Direct AC220-240V Operation, eliminating the need for an external DC power supply.
- Flame-Retardant ABS Housing ensuring durability and resistance to deformation.
- Adjustable Delay Time & Sensitivity via onboard controls for application-specific tuning.
Out of stock
The 5.8GD05Z radar sensor employs continuous wave (CW) Doppler radar principles at 5.8GHz to detect motion based on frequency shift in reflected signals. This high-frequency operation allows it to sense movement through non-metallic barriers like glass, wood, and thin walls, making it suitable for concealed installations. The integrated microprocessor analyzes the echo reflection to trigger a relay output, activating connected loads such as lights or alarms.
Designed for direct integration into 220-240V AC lines, it features screw terminals for secure wiring. The sensor is housed in a flame-retardant ABS shell, providing protection against oxidation and physical impact. Operational parameters including detection distance and the delay time before automatic shut-off are user-adjustable, enabling optimization for energy savings in varied residential, commercial, or industrial environments.
Additional Information
| Weight | 0.086 kg |
|---|---|
| Dimensions | 9.8 × 5.2 cm |
