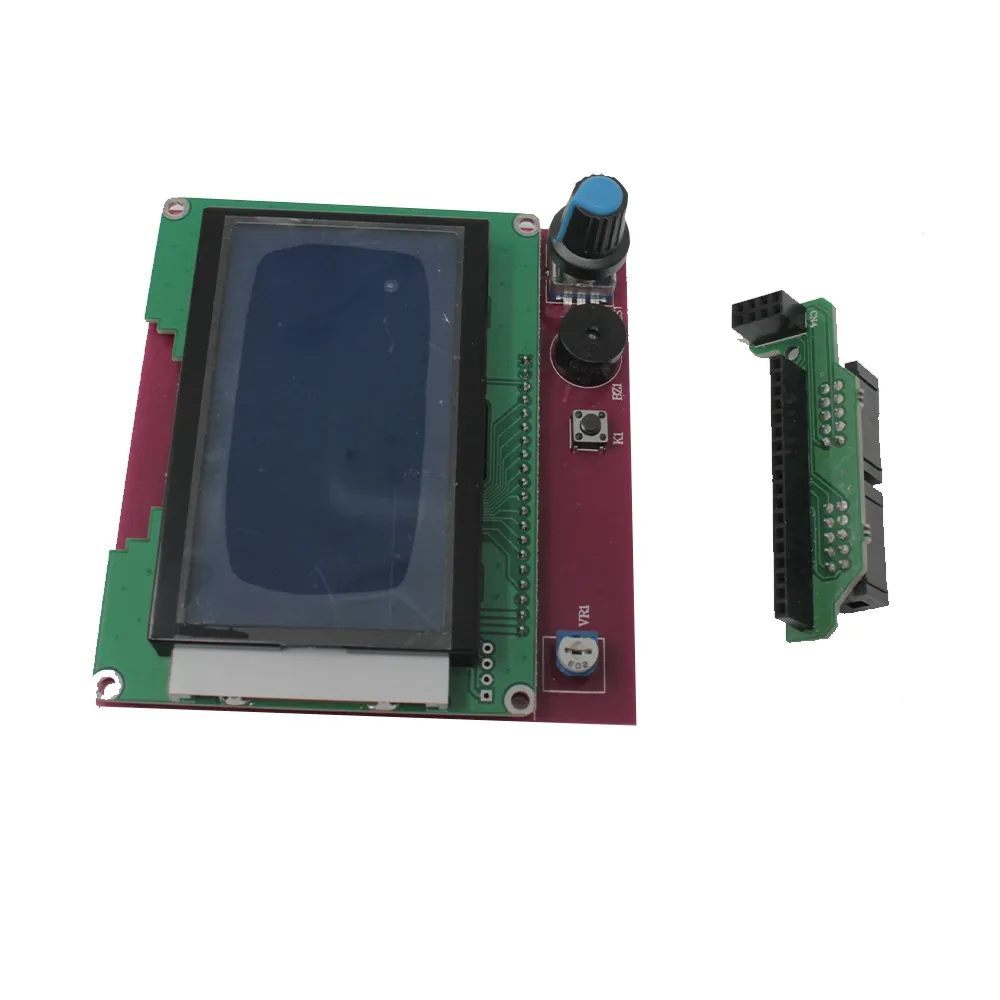

128x64 Smart LCD Controller for RAMPS 1.4 3D Printers
128x64 Smart LCD Controller for RAMPS 1.4 3D Printers - Image 2
128x64 Smart LCD Controller for RAMPS 1.4 3D Printers - Image 3
128x64 Smart LCD Controller for RAMPS 1.4 3D Printers - Image 4
SKU: 3DDF-1800
📋 GST Invoice Available

128x64 Smart LCD Controller for RAMPS 1.4 3D Printers

₹849.00 (Inclusive of all taxes)
Out of Stock

This 128×64 Smart LCD Controller provides direct control and standalone printing capabilities for RAMPS 1.4 3D printer setups. Featuring an integrated SD card slot and rotary encoder, it enables PC-free operation and real-time parameter adjustments directly at the printer.

Features

  • Enables standalone operation and direct control for RAMPS 1.4 3D printer setups.

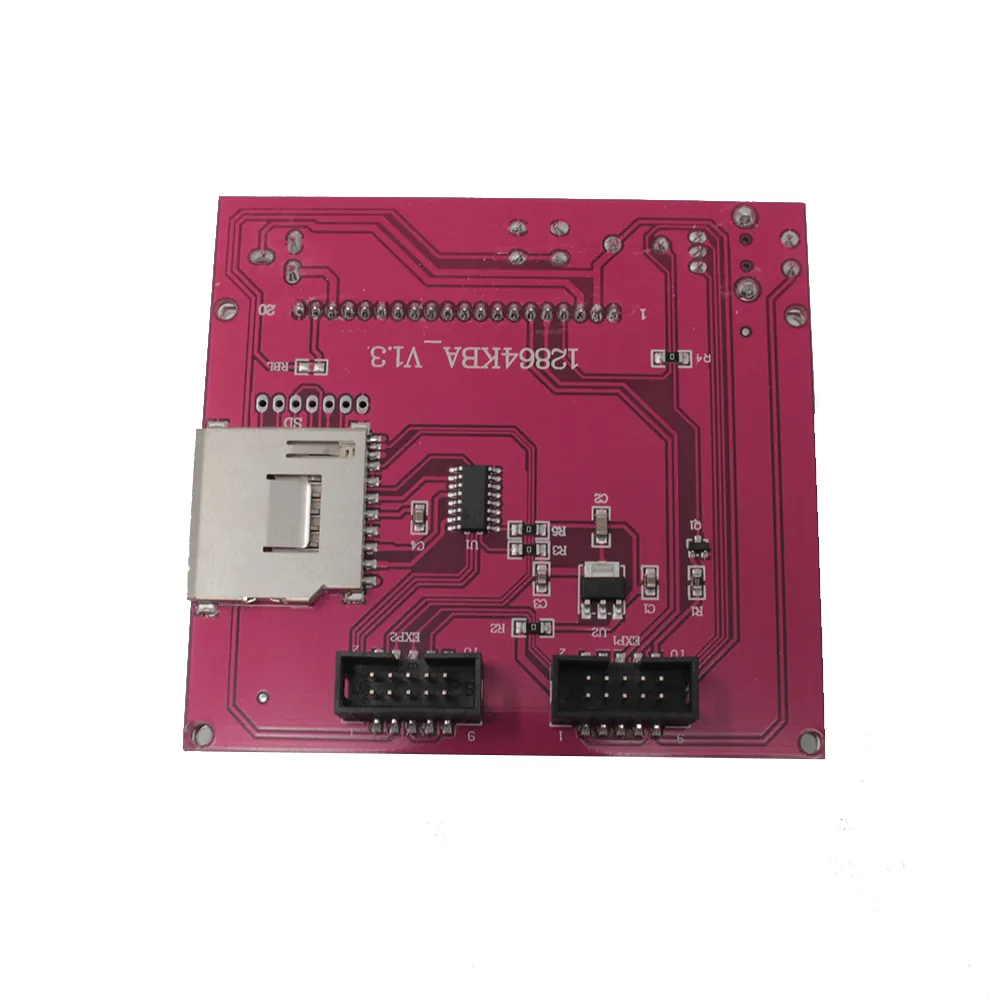

  • Features an integrated SD card slot, allowing PC-free printing directly from G-code files.

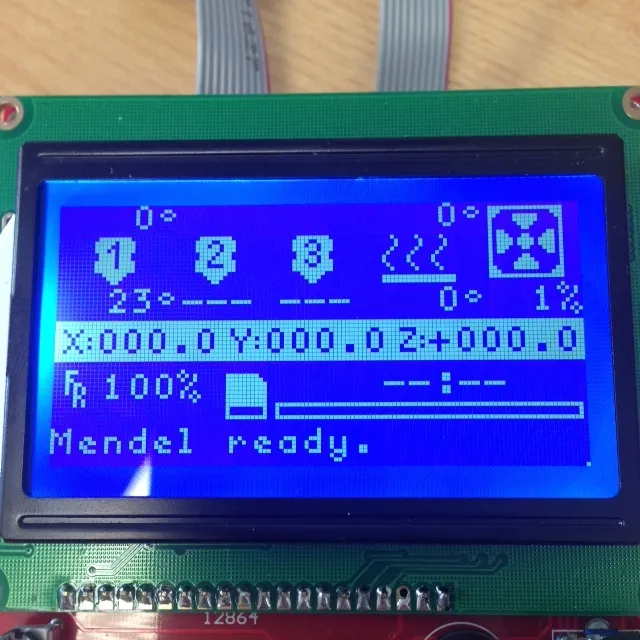

  • Large 128×64 LCD display provides clear real-time status and menu navigation.
  • Includes a rotary encoder for precise parameter adjustment and intuitive file selection.
  • Designed for plug-and-play installation with RAMPS, requiring a simple Marlin firmware modification.

Out of stock

Description

The 128×64 Smart LCD Controller transforms your RAMPS 1.4-based 3D printer into a fully standalone fabrication unit. Once connected, this intelligent controller eliminates the need for a tethered PC during printing, providing power for the integrated SD card reader. Users can directly load G-code files from an SD card, initiating prints and monitoring progress with enhanced flexibility.

This smart controller integrates a responsive rotary encoder, enabling comprehensive printer management directly from the device. Calibration, axis movements, and fine-tuning of printing parameters can all be executed via the intuitive interface. Fully supported by Marlin firmware, integrating this controller requires only a minor configuration change, making it an essential upgrade for improved workflow efficiency and operational independence in 3D printing.

Key Features

  • High-contrast 128x64 pixel LCD provides a clear, detailed display for all printer operations.
  • Integrated SD card slot allows direct file selection and PC-free printing.
  • Equipped with a rotary encoder for precise parameter adjustment and intuitive menu navigation.
  • Designed for direct plug-and-play connection to RAMPS 1.4 boards.
  • Fully compatible with Marlin firmware, requiring minor configuration for activation.
  • Enables complete control over 3D printer functions without an external computer.

Applications

  • Upgrading existing RAMPS 1.4 3D printers to achieve standalone, PC-free operation.
  • Integrating into custom RepRap or Prusa-style 3D printer builds for direct control and SD card printing.
  • Enhancing user interface and control capabilities for DIY 3D printer projects.
  • Facilitating efficient print job management and real-time parameter adjustments in workshop settings.

Technical Specifications

Item Type3D Printer Accessory
CompatibilityRAMPS 1.4
Input Voltage5 VDC
Display Size3.2 inches
Display Resolution128x64 pixels
Display TypeLCD
Cable Length30 cm (approx.)
Length93 mm
Width87 mm
Weight110 g

Frequently Asked Questions

What 3D printer boards is this LCD controller compatible with?

This 128x64 Smart LCD Controller is specifically designed for full compatibility with RAMPS 1.4 control boards. It offers a direct plug-and-play connection, making it an ideal upgrade for printers utilizing the RAMPS 1.4 architecture to enable standalone operation and enhanced user interaction.

Does this controller require a computer to print?

No, a primary benefit of this Smart LCD Controller is enabling PC-free operation. It features an integrated SD card slot, allowing users to load G-code files directly onto the printer. All print operations, including file selection and parameter adjustments, can be managed via the onboard rotary encoder.

Is firmware modification necessary for installation?

Yes, while the hardware is plug-and-play with RAMPS 1.4, you must modify your 3D printer's Marlin firmware. This typically involves uncommenting the specific line `#define REPRAP_DISCOUNT_FULL_GRAPHIC_SMART_CONTROLLER` in the `Configuration.h` file to activate support for the display.

What functions can be performed directly from the LCD?

The LCD controller allows for comprehensive standalone operation. Users can select and initiate print jobs from the SD card, monitor print progress, adjust printing parameters like temperatures and speeds, and perform axis movements and calibration routines directly using the integrated rotary encoder and buttons.

What is the display resolution of this LCD?

This controller features a large 128x64 pixel LCD screen, providing a clear graphical interface. This resolution is sufficient for displaying menus, file lists, and real-time print information, ensuring easy readability and navigation for users managing their 3D printing tasks without a computer.

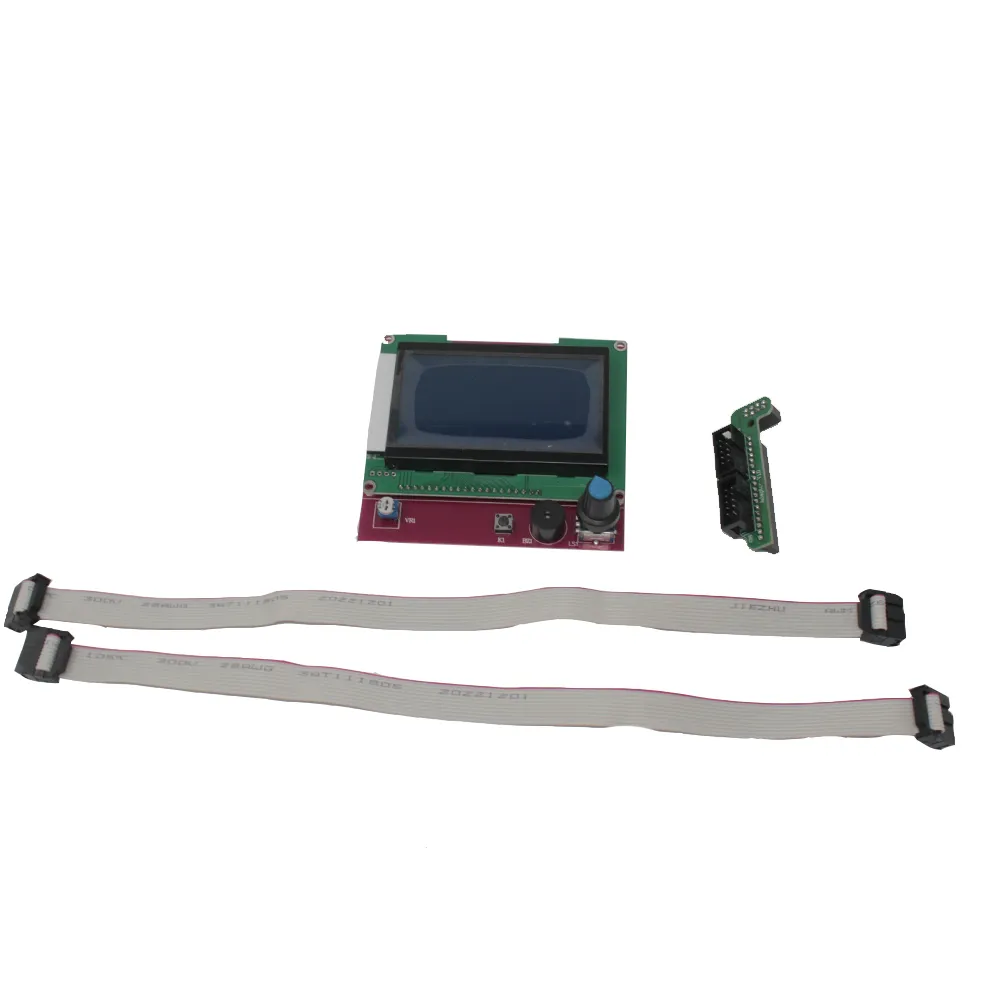

Package Includes

  • 1 x 128x64 Smart LCD Controller
  • 1 x Smart Adapter Board
  • 2 x 30cm FRC Ribbon Cables

Additional Information

Weight 0.11 kg
Dimensions 9.3 × 8.7 cm
