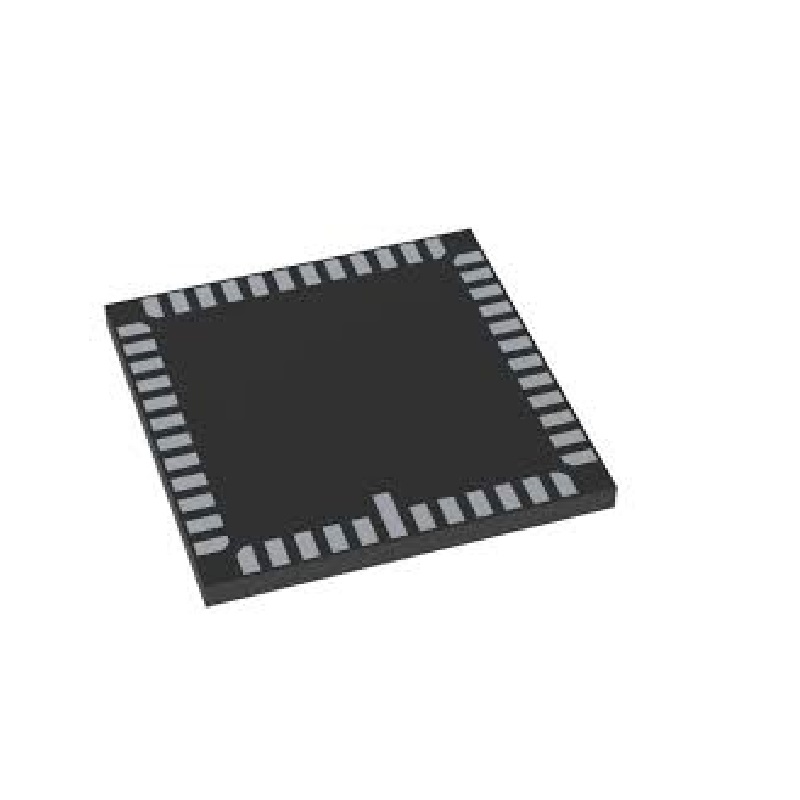

onsemi AR0130CSSC00SPCA0-DPBR 3.75µm CMOS Image Sensor 1280x960 LCC-48
The onsemi AR0130CSSC00SPCA0-DPBR is a 1.2-megapixel CMOS image sensor with a 3.75µm pixel size, delivering a 1280×960 resolution for machine vision, industrial inspection, and embedded imaging applications. It features a low-power 270mW operation, a wide -30°C to 75°C temperature range, and is housed in a compact LCC-48 package for easy integration.
Features
- 1.2MP CMOS Image Sensor with 1280(H) x 960(V) resolution
- 3.75µm x 3.75µm pixel size for balanced sensitivity and detail
- Low power consumption of 270mW for energy-efficient designs
- Wide operating temperature range from -30°C to +75°C
- Compact LCC-48 (10x10mm) surface-mount package
Out of stock
The AR0130CSSC00SPCA0-DPBR from onsemi is a high-performance CMOS image sensor engineered for demanding industrial and embedded vision applications. Its 1.2-megapixel resolution and 3.75µm pixel architecture provide a solid balance of image detail, light sensitivity, and dynamic range, suitable for real-time monitoring and analysis.
This sensor operates on a low 270mW power budget and across an extended industrial temperature range, ensuring reliable performance in variable environmental conditions. The device is supplied in a leadless chip carrier (LCC-48) package, facilitating standard surface-mount assembly processes for integration into compact camera modules and vision systems.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 8 × 10 × 3 cm |
